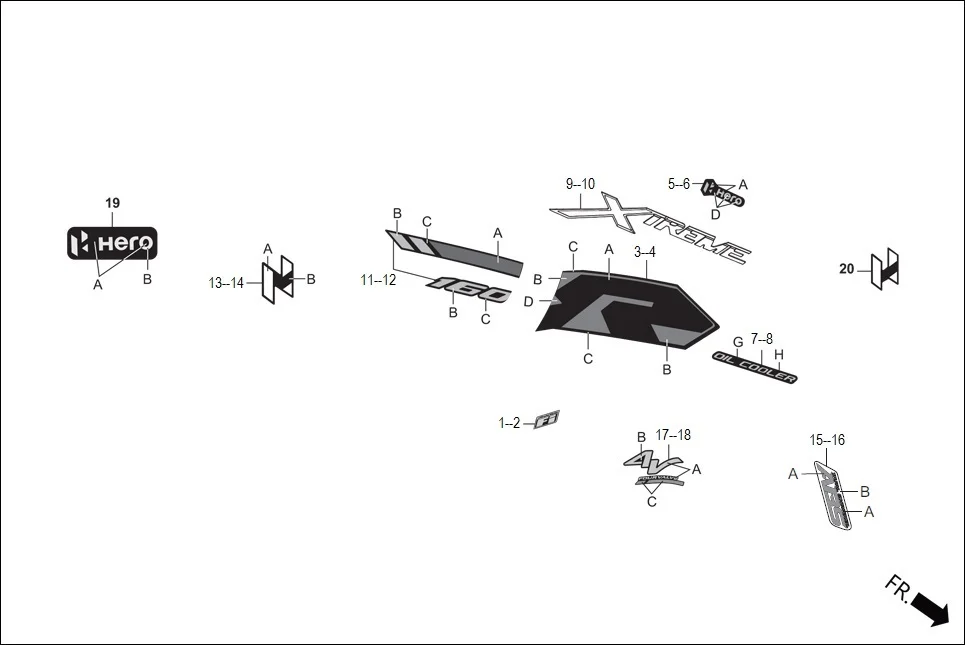

F-27_CONN - STRIPE/ MARKS
Hero XTREME 160 4V FLAT PILLION(JULY, 2024) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 2 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 3 | 86881-ACR-300S | STRIPE A TANK COVER R SIDE (TYPE-2) | 1 | |
| 3 | ACRES6B0060EEG | STRIPE TANK COVER RR A RH (TYPE-2) | 1 | |
| 4 | 86882-ACR-300S | STRIPE A TANK COVER L SIDE (TYPE-2) | 1 | |
| 4 | ACRES6B0070EEG | STRIPE TANK COVER RR A LH (TYPE-2) | 1 | |
| 5 | 86885-ACR-300S | MARK HERO TANK COVER R SIDE (TYPE-2) | 1 | |
| 5 | ACRES6B0040EEG | MARK HERO TANK COVER R SIDE (TYPE-2) | 1 | |
| 6 | 86886-ACR-300S | MARK HERO TANK COVER L SIDE (TYPE-2) | 1 | |
| 6 | ACRES6B0050EEG | MARK HERO TANK COVER L SIDE (TYPE-2) | 1 | |
| 7 | 86887-ACR-300S | STRIPE B TANK COVER R SIDE (TYPE-2) | 1 | |
| 7 | ACRES6B0080EEG | STRIPE B TANK COVER R SIDE (TYPE-2) | 1 | |
| 8 | 86888-ACR-300S | STRIPE B TANK COVER L SIDE (TYPE-2) | 1 | |
| 8 | ACRES6B0090EEG | STRIPE B TANK COVER L SIDE (TYPE-2) | 1 | |
| 9 | 86833-ACR-000 | EMBLEM R TANK COVER SIDE | 1 | |
| 10 | 86834-ACR-000 | EMBLEM L TANK COVER SIDE | 1 | |
| 11 | 86773-ACR-300S | STRIPE TANK COVER RR A RH (TYPE-2) | 1 | |
| 11 | ACRES6B0100EEG | STRIPE A TANK COVER R SIDE (TYPE-2) | 1 | |
| 12 | 86774-ACR-300S | STRIPE TANK COVER RR A LH (TYPE-2) | 1 | |
| 12 | ACRES6B0110EEG | STRIPE A TANK COVER L SIDE (TYPE-2) | 1 | |
| 13 | ACRES6B0140DRG | STRIPE COVER R SIDE (TYPE-2) | 1 | |
| 13 | ACRES6B0140EEG | STRIPE COWL REAR RH (TYPE-2) | 1 | |
| 14 | ACRES6B0150DRG | STRIPE COVER L SIDE (TYPE-2) | 1 | |
| 14 | ACRES6B0150EEG | STRIPE COWL REAR LH (TYPE-2) | 1 | |
| 15 | ACRES6B0160EEG | MARK ABS FORK ASSY FR (TYPE-1) | 1 | |
| 17 | 86891-ACR-300S | STRIPE COWL UNDER R (TYPE-2) | 1 | |
| 17 | ACRES6B0120EEG | STRIPE COWL UNDER R (TYPE-2) | 1 | |
| 18 | 86892-ACR-300S | STRIPE COWL UNDER L (TYPE-2) | 1 | |
| 18 | ACRES6B0130EEG | STRIPE COWL UNDER L (TYPE-2) | 1 | |
| 19 | 87117-ABZ-000R | MARK HERO RR FENDER B (TYPE-1) | 1 | |
| 20 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
