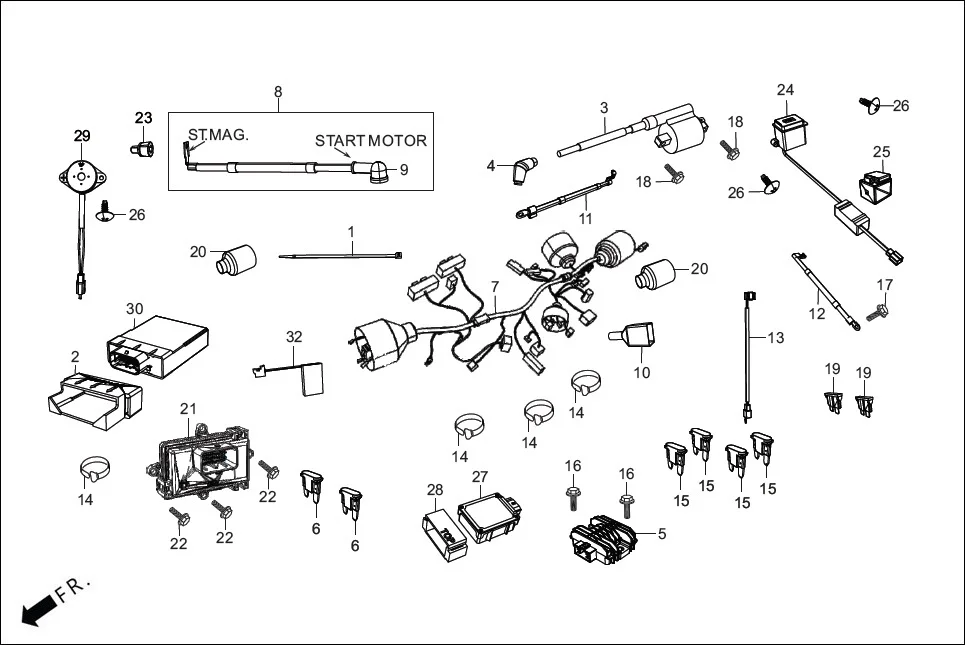

F-24_CONN - ELECTRICALS(WIRE HARNESS/START CABLES)
Hero XTREME 160 4V FLAT PILLION(JULY, 2024) · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90657-AAW-300 | CABLE TIE (LONG) | 1 | |
| 2 | 38871-ACR-401 | CUSHION BCM UNIT | 1 | |
| 3 | 30510-AAF-401 | COIL COMP IGNITION. | 1 | |
| 3 | 30510-AAC-801 | COIL COMP IGNITION | 1 | |
| 4 | 30700-AAE-30099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31600-ABZ-001 | REG RECT COMP | 1 | |
| 6 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 7 | 32100-ACR-410 | HARNESS WIRE | 1 | |
| 8 | 32410-ABZ-000 | CABLE START MOTOR | 1 | |
| 9 | 32411-253-000 | COVER, STARTING MOTOR | 1 | |
| 10 | 32103-GE0-000 | COVER,CONNECTOR B | 1 | |
| 11 | 32601-ABZ-B00 | CABLE BATT EARTH | 1 | |
| 12 | 32602-ABZ-000 | CABLE ENG EARTH | 1 | |
| 13 | 31810-ABZ-001 | UNIT ASSY CAPACITOR | 1 | |
| 14 | 91540-AAN-410 | CLIP, BAND HARN | 4 | |
| 15 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 16 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 17 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 1 | |
| 18 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 19 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
| 20 | 32108-344-820 | COVER, CONNECTOR | 2 | |
| 21 | 38770-ACR-021 | UNIT COMP ECU | 1 | |
| 22 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 3 | |
| 23 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 1 | |
| 24 | 31304-ABZ-601 | USB CHARGER | 1 | |
| 25 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 26 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 3 | |
| 27 | 38710-AAL-C31 | TELEMATICS CONTROL UNIT | 1 | |
| 28 | 38720-ACR-001 | CUSHION TELEMATICS CONTROL UNIT | 1 | |
| 29 | 33470-AAY-001 | ELECTRONIC BEEPER | 1 | |
| 30 | 38870-ACR-401 | UNIT COMP BCM | 1 | |
| 32 | 3181A-AAL-C31 | CELL ASSY TCU | 1 | |
