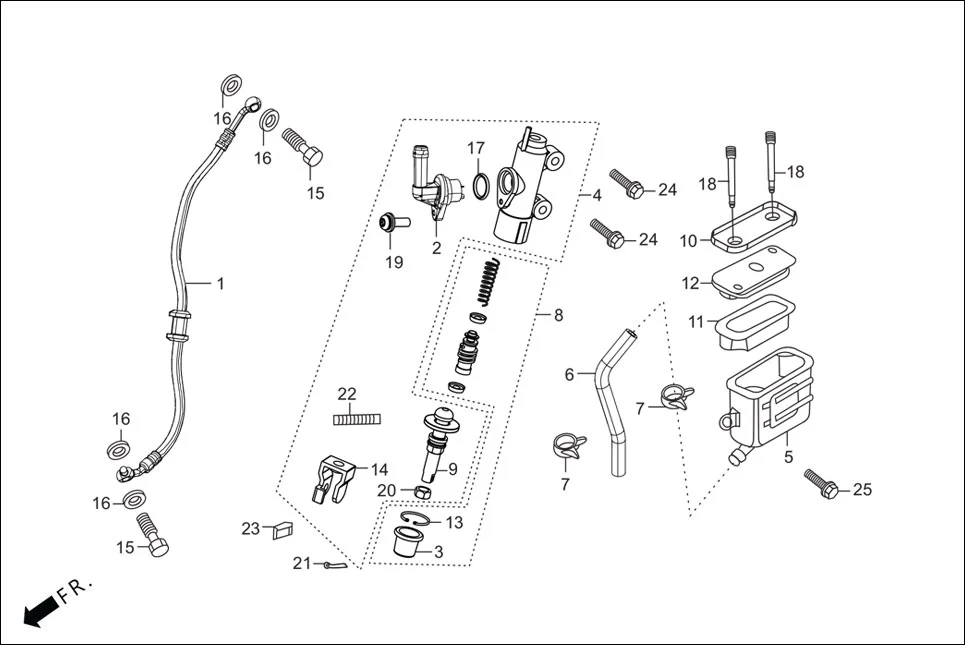

F-8 - REAR BRAKE(MASTER CYL.)
Hero XTREME 160 4V PREMIUM(August,2023) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43310-ABZ-010 | HOSE COMP. RR BRAKE | 1 | |
| 1 | 43310-ABZ-610 | HOSE COMP RR BRAKE | 1 | |
| 2 | 43503-ABZ-010 | CONNECTOR | 1 | |
| 3 | 43504-MB2-006 | BOOT COMP. | 1 | |
| 4 | 43510-ABZ-010 | SUB ASSY. REAR M/C | 1 | |
| 5 | 43511-KW7-881 | OIL CUP COMP. | 1 | |
| 6 | 43512-ABZ-010 | HOSE COMP. RR M/C | 1 | |
| 7 | 43514-KS6-701 | CLAMP. M/C OIL HOSE | 2 | |
| 8 | 43520-MJ6-315 | PISTON SET M/C | 1 | |
| 9 | 43530-MV9-006 | PUSH ROD COMP. | 1 | |
| 10 | 45513-GW0-911 | CAP M/C | 1 | |
| 11 | 45520-GW0-911 | DIAPHRAGM | 1 | |
| 12 | 45521-GW0-911 | PLATE DIAPHRAGM | 1 | |
| 13 | 46182-MEL-D21 | CIRCLIP | 1 | |
| 14 | 46504-KV6-702 | JOINT BRK ROD | 1 | |
| 15 | 90145-MS9-610 | OIL BOLT, 10 X 22 | 2 | |
| 16 | 90545-ABZ-000 | WASHER OIL BOLT | 4 | |
| 17 | 91212-422-006 | O RING | 1 | |
| 18 | 93600-04045-1G | SCREW FLAT 4X45 | 2 | |
| 19 | 93893-04012-17L | SCREW WASHER 4X12 | 1 | |
| 20 | 94002-08000-0S | NUT HEX.8 MM | 1 | |
| 21 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 22 | 94305-20102 | PIN SPRING 2X10 | 1 | |
| 23 | 95015-54000 | PIN D JOINT | 1 | |
| 24 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 25 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
