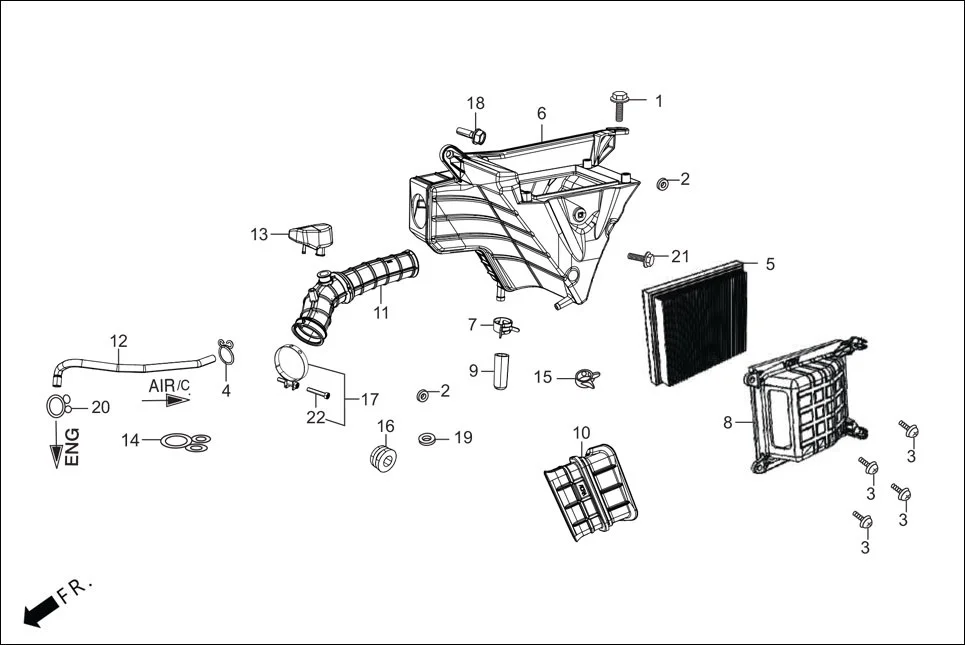

F-13 - AIR CLEANER
Hero XTREME 160 4V PREMIUM(August,2023) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 90111-187-000 | BOLT, FLANGE. 6 MM | 1 | |
| 3 | 93500-05016-0A | SCREW, PAN, 5 X 16 | 4 | |
| 4 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 5 | 17208-AAB-A00 | ELEMENT COMP AIR/C | 1 | |
| 6 | 17210-ACR-000 | CASE COMP AIR/C | 1 | |
| 7 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 8 | 17220-ABZ-000 | COVER AIR/C CASE | 1 | |
| 9 | 17227-ABA-000 | V.TUBE 11X15X40 | 1 | |
| 10 | 17219-ACR-000 | DUCT AIR/C | 1 | |
| 11 | 17222-ACR-000 | TUBE AIR/C CONNECTOR | 1 | |
| 12 | 17371-ABZ-B00 | BREATHER TUBE | 1 | |
| 13 | 17311-ABZ-000 | RESONATOR | 1 | |
| 14 | 15772-KTN-900 | CLIP BREATHER TUBE | 1 | |
| 15 | 19509-GE2-003 | CLAMP, D19 TUBE | 1 | |
| 16 | 83545-KCJ-690 | RUBBER, SIDE COVER | 1 | |
| 20 | 90601-KAF-003 | CLIP, SW. COVER | 1 | |
