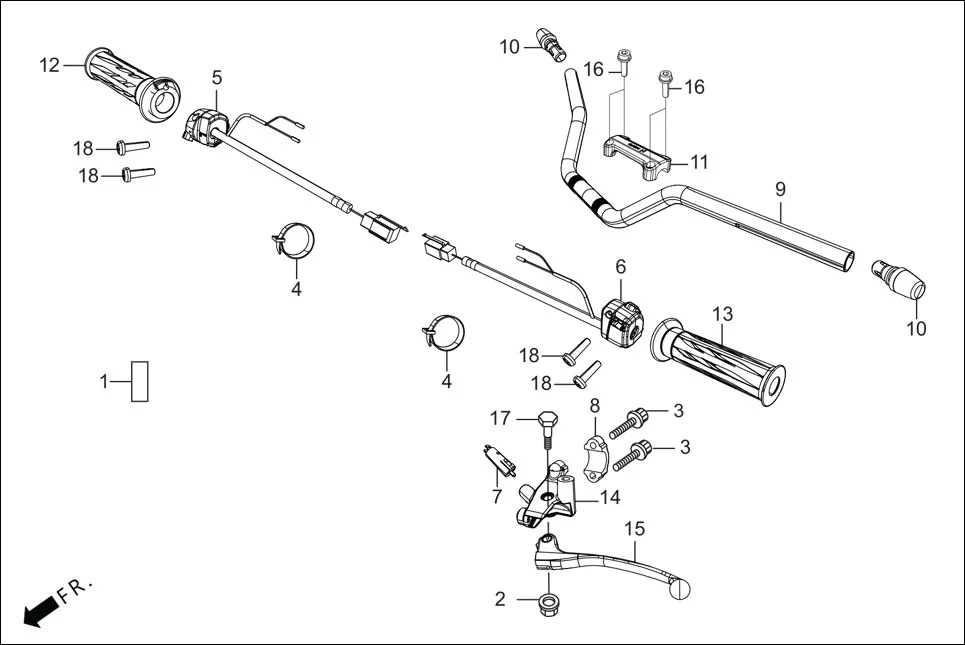

F-3B - HANDLE & HNDL COVER(HANDLE LEVER / SWITCH/ CABLES)
Hero XTREME 160 4V PREMIUM(August,2023) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ACR-000 | CABLE COMP THROTTLE | 1 | |
| 3 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
| 4 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 5 | 35150-ABZ-B01 | SW ASSY ENGINE STOP AND START | 1 | |
| 6 | 35200-ABZ-B01 | SWITCH ASSY WINKER | 1 | |
| 7 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 7 | 35330-AAH-F11 | SW COMP FR LEVER | 1 | |
| 8 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 9 | 53100-ABZ-000 | PIPE STRG. HANDLE | 1 | |
| 10 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 11 | 53131-ACR-000 | HOLDER HANDLE UP | 1 | |
| 12 | 53140-KVE-860 | GRIP COMP THROT | 1 | |
| 13 | 53166-KVE-860 | GRIP L HANDLE | 1 | |
| 14 | 53172-KRC-900 | BRACKET, HANDLE LEVER | 1 | |
| 15 | 53178-KFN-850 | LEVER COMP., L HANDLE | 1 | |
| 16 | 96600-06025-1K | SOCKET BOLT 6X25 | 4 | |
| 17 | 90113-438-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 18 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 4 | |
