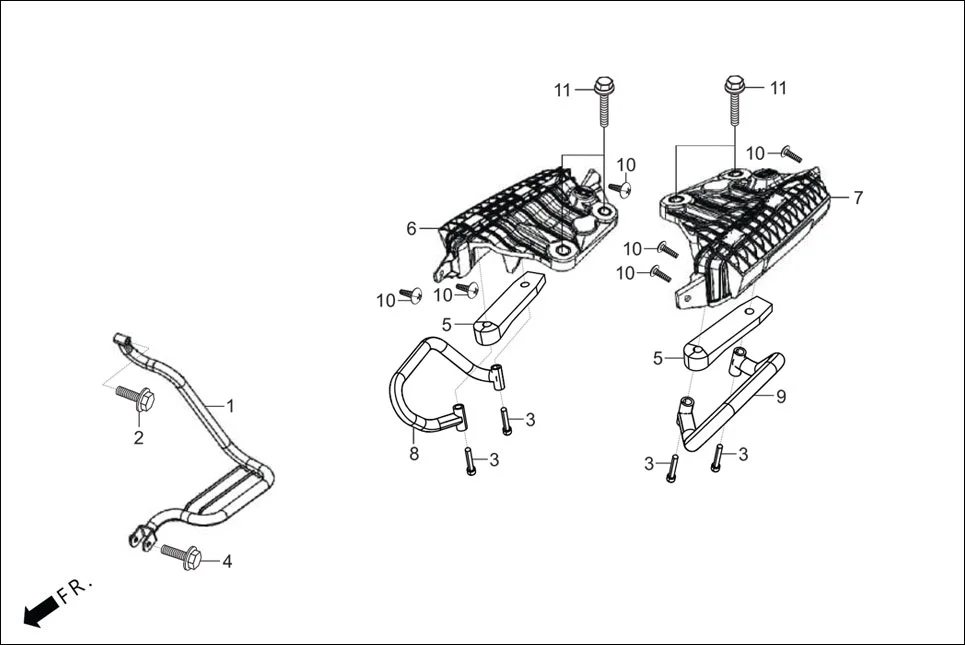

F-29 - RR SIDE GRAB/ STEP WOMEN(OPTIONAL)
Hero XTREME 160 4V PREMIUM(August,2023) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51104-ABZ-000 | STEP WOMEN | 1 | |
| 2 | 95701-08035-07 | BOLT, FLANGE, 8X35 | 1 | |
| 4 | 95801-08038-07 | BOLT FLANGE 8X38 | 1 | |
| 5 | 50405-ABZ-000 | CUSHION GRAB MTG. RR | 2 | |
| 6 | 5040A-ABZ-000 | GRIP R REAR SUB ASSY | 1 | |
| 7 | 5045A-ABZ-000 | GRIP L REAR SUB ASSY | 1 | |
| 8 | 50415-ABZ-000 | RR SIDE GRAB R | 1 | |
| 9 | 50425-ABZ-000 | RR SIDE GRAB L | 1 | |
| 11 | 95701-08025-07 | BOLT FLANGE 8X25 | 4 | |
