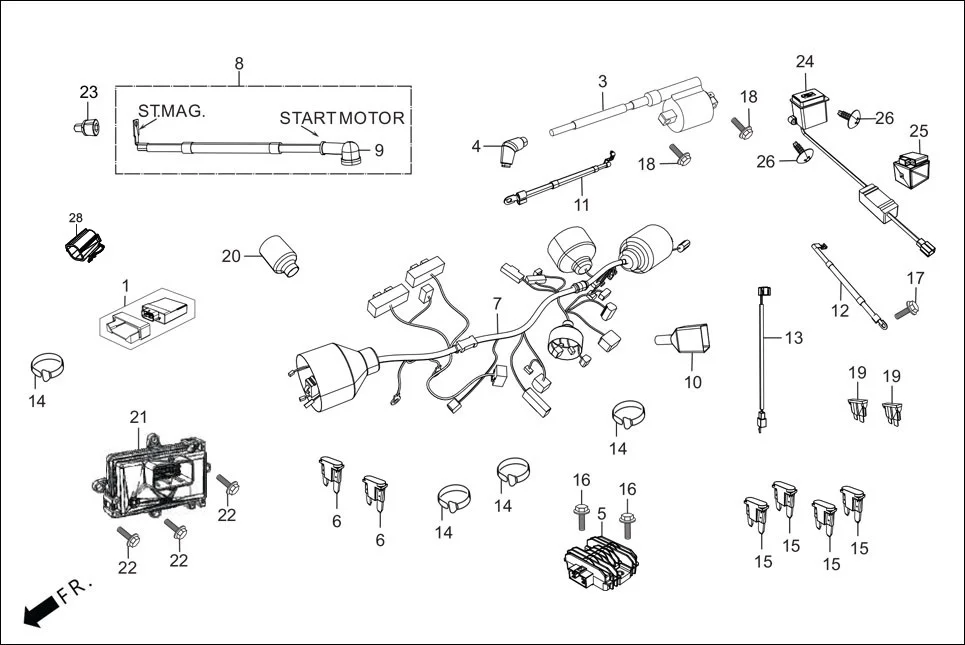

F-24 - ELECTRICALS(WIRE HARNESS/START CABLES)
Hero XTREME 160 4V PREMIUM(August,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 38800-ABZ-001 | UNIT ASSY BCM | 1 | |
| 2 | 38871-ABZ-001 | CUSHION BCM UNIT | 1 | |
| 3 | 30510-AAF-401 | COIL COMP IGNITION. | 1 | |
| 4 | 30700-AAE-30099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31600-ABZ-001 | REG RECT COMP | 1 | |
| 6 | 98215-HMC-000 | MINI FUSE 15A | 2 | |
| 7 | 32100-ACR-000 | HARNESS WIRE | 1 | |
| 8 | 32410-ABZ-000 | CABLE START MOTOR | 1 | |
| 9 | 32411-253-000 | COVER, STARTING MOTOR | 1 | |
| 10 | 32103-GE0-000 | COVER,CONNECTOR B | 1 | |
| 11 | 32601-ABZ-B00 | CABLE BATT EARTH | 1 | |
| 12 | 32602-ABZ-000 | CABLE ENG EARTH | 1 | |
| 13 | 31810-ABZ-001 | UNIT ASSY CAPACITOR | 1 | |
| 14 | 91540-AAN-410 | CLIP, BAND HARN | 4 | |
| 15 | 98210-HMC-000 | MINI FUSE 10A | 4 | |
| 20 | 32108-344-820 | COVER, CONNECTOR | 2 | |
| 21 | 38770-ACR-001 | UNIT COMP ECU | 1 | |
| 24 | 31304-ABZ-601 | USB CHARGER | 1 | |
| 25 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 26 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 2 | |
