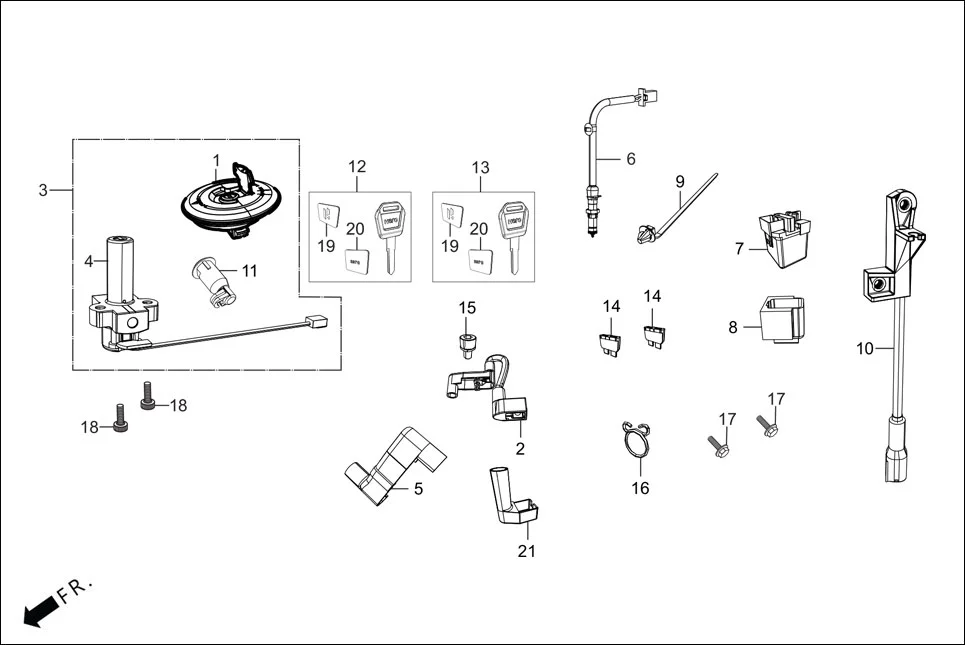

F-23 - SWITCH ASSY ./ RELAY / LOCK ASSY. / KEY BLANK
Hero XTREME 160 4V PREMIUM(August,2023) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17620-ACK-40099 | CAP COMP FUEL FILLER BS6 ETHANOL | 1 | |
| 2 | 32401-ABZ-B00 | CABLE ST MAG BATT | 1 | |
| 3 | 35010-ABZ-B01 | KEY SET | 1 | |
| 4 | 35100-AAK-201 | SWITCH ASSY., COMB & LOCK | 1 | |
| 5 | 32406-KVN-970 | COVER ST.MAG.TERMINAL A | 1 | |
| 6 | 35350-ABZ-001 | SWITCH ASSY,REAR STOP | 1 | |
| 7 | 35850-AAM-H01 | SW ASSY. START MAG | 1 | |
| 8 | 35856-KBG-007 | RUBBER,SHOCK | 1 | |
| 9 | 91541-ABG-000 | CLIP BAND | 1 | |
| 10 | 35140-ABZ-001 | SENSOR ASSY SIDE STAND | 1 | |
| 12 | 35121-ABW-001 | BLANK KEY NO. 01 | 1 | |
| 13 | 35122-ABW-001 | BLANK KEY NO. 02 | 1 | |
| 14 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
| 15 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 1 | |
| 18 | 96600-08025-00 | SOCKET, BOLT, 8 X 25 | 2 | |
| 19 | 35113-ABW-000 | EMBLEM ICON | 2 | |
| 20 | 35114-ABW-000 | EMBLEM, WORD MARK | 2 | |
| 21 | 32417-KTR-A10 | COVER, BAT. TERMINAL | 1 | |
