F-19-CUSHION REAR

HeroXTREME 160 4V PREMIUM(August,2023) · 3 parts

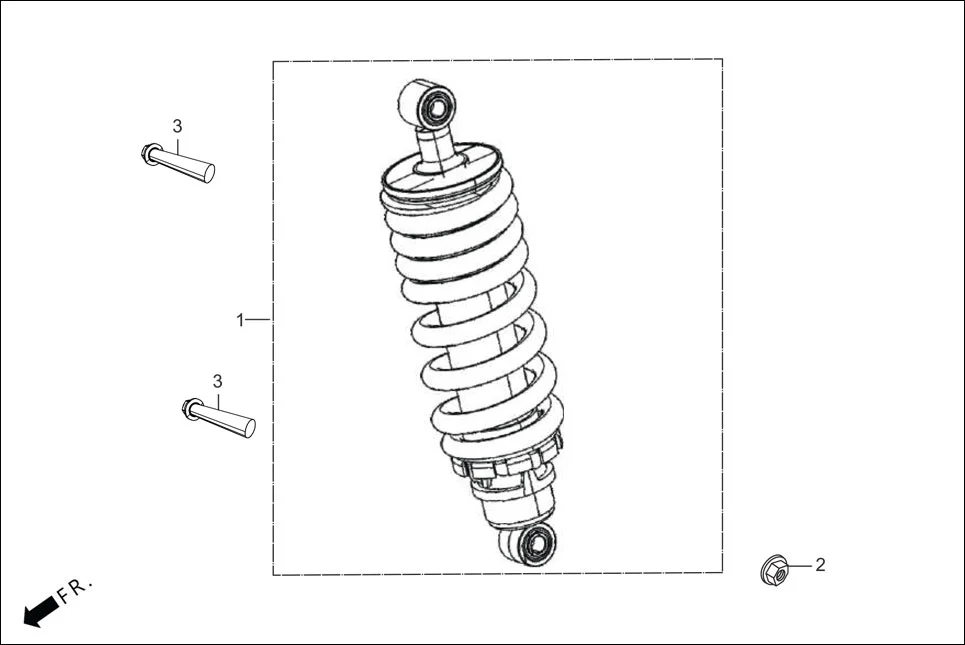

F-19 CUSHION REAR assembly diagram for Hero XTREME 160 4V PREMIUM(August,2023)

Parts in This Assembly (3)

Ref #Part NumberDescriptionQty
152400-ACR-300CUSHION ASSY. REAR1
290304-KST-942NUT FLG.PT 10MM1
390159-AAB-A00BOLT FLANGE 10X502
