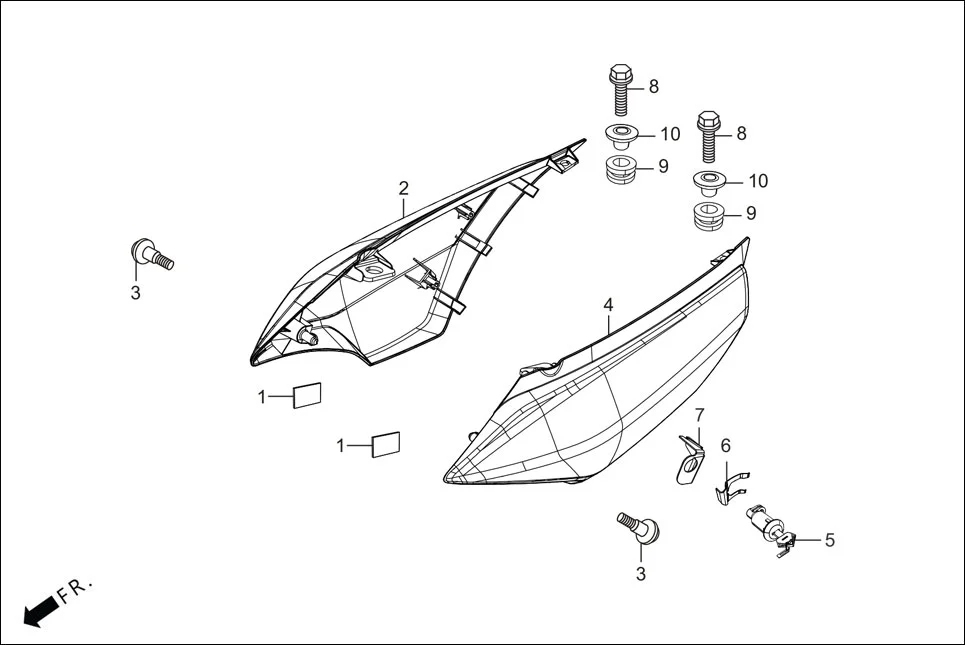

F-12-SIDE COVER
HeroXTREME 160 4V PREMIUM(August,2023) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77232-KVE-900 | CUSHION COWL CENTER B. | 2 | |
| 2 | 77260-ACR-300C | SET COVER R SIDE (SHOOTING NIGHT STAR ME.) | 1 | |
| 2 | 77260-ACR-300F | SET COVER R SIDE (MATT SLATE BLACK) | 1 | |
| 3 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 4 | 77270-ACR-300C | SET COVER L SIDE (SHOOTING NIGHT STAR ME.) | 1 | |
| 4 | 77270-ACR-300F | SET COVER L SIDE (MATT SLATE BLACK) | 1 | |
| 5 | 77239-AAL-H00 | KEY SEAT LOCK | 1 | |
| 6 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 7 | 77244-ABZ-000 | STAY SEAT LOCK CABLE | 1 | |
| 8 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 2 | |
| 9 | 80112-KVN-900 | RUBBER, RR FENDER | 2 | |
| 10 | 80111-KVN-900 | COLLAR, RR. FENDER | 2 |
