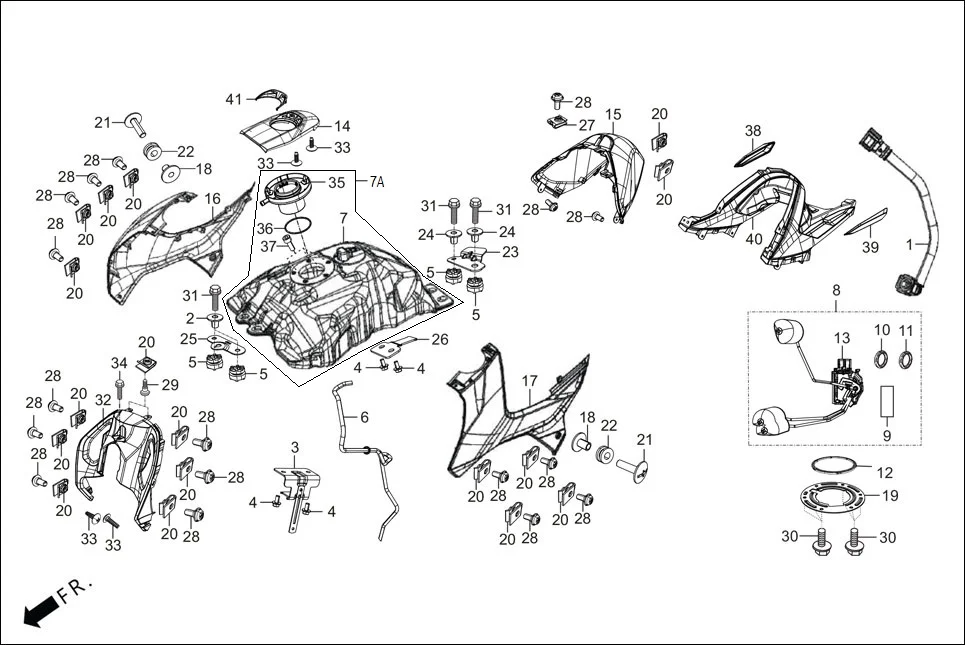

F-11 - FUEL TANK
Hero XTREME 160 4V PREMIUM(August,2023) · 42 parts
Parts in This Assembly (42)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17570-ACR-002 | HOSE FUEL FEED | 1 | |
| 2 | 17312-ABZ-000 | COLLAR FRONT FUEL TANK | 2 | |
| 3 | 1752A-ABZ-B00 | STAY USB CONTROLLER ASSY | 1 | |
| 4 | 95701-05010-00 | BOLT FLANGE 5X10 | 4 | |
| 5 | 17622-ABZ-B00 | GROMMET FUEL TANK | 4 | |
| 6 | 1719A-ABZ-B00 | TUBE DRAIN SUB ASSY | 1 | |
| 7 | 17510-ABZ-B00 | TANK COMP FUEL | 1 | |
| 7 | 17520-ABZ-B00 | FUEL TANK SUB ASSY | 1 | |
| 8 | 16700-ABZ-B01 | UNIT ASSY FUEL PUMP | 1 | |
| 9 | 16701-ABZ-002 | FUEL PUMP FILTER | 1 | |
| 10 | 16702-ABZ-002 | FUEL PUMP O RING | 1 | |
| 11 | 16702-ABZ-003 | FUEL PUMP O RING | 1 | |
| 12 | 17572-AAC-G70 | GASKET FUEL PUMP | 1 | |
| 13 | 37800-ABZ-B01 | UNIT ASSY FUEL | 1 | |
| 14 | 17530-ACR-000C | TANK COVER FR. (SHOOTING NIGHT STAR ME.) | 1 | |
| 14 | 17530-ACR-000F | TANK COVER FR. (MATT SLATE BLACK) | 1 | |
| 15 | 17580-ACR-300C | SET TANK COVER RR. (SHOOTING NIGHT STAR ME.) | 1 | |
| 15 | 17580-ACR-300F | SET TANK COVER RR. (MATT SLATE BLACK) | 1 | |
| 16 | 17555-ACR-300C | SET TANK COVER R SIDE (SHOOTING NIGHT STAR ME.) | 1 | |
| 16 | 17555-ACR-300F | SET TANK COVER R SIDE (MATT SLATE BLACK) | 1 | |
| 17 | 17565-ACR-300C | SET TANK COVER L SIDE (SHOOTING NIGHT STAR ME.) | 1 | |
| 17 | 17565-ACR-300F | SET TANK COVER L SIDE (MATT SLATE BLACK) | 1 | |
| 19 | 17507-ABZ-B00 | PLATE SETTING | 1 | |
| 22 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 2 | |
| 23 | 17525-ABZ-000 | STAY SEAT GUIDE | 1 | |
| 24 | 17313-ABZ-000 | COLLAR REAR FUEL TANK | 2 | |
| 25 | 17523-ABZ-000 | STAY TANK COVER FR | 1 | |
| 26 | 17519-ABZ-B00 | STAY OWV | 1 | |
| 28 | 90101-087-720 | SCREW, HEAD LIGHT SET | 16 | |
| 30 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 6 | |
| 32 | 64120-ACR-000 | TANK COVER INNER | 1 | |
| 35 | 17504-ABZ-B00 | FUEL FILLER COMP | 1 | |
| 36 | 91305-ABZ-B00 | O RING | 1 | |
| 37 | 96600-05014-07 | BOLT SOCKET 5X14 | 5 | |
| 38 | 83550-ACR-000T | COVER B R SIDE (MAT AXIS GRAY METALLIC) | 1 | |
| 38 | 83550-ACR-000G | COVER B R SIDE (PEARL BLACK) | 1 | |
| 39 | 83650-ACR-000T | COVER B L SIDE (MAT AXIS GRAY METALLIC) | 1 | |
| 39 | 83650-ACR-000G | COVER B L SIDE (PEARL BLACK) | 1 | |
| 40 | 17550-ACR-000G | TANK COVER RR B (PEARL BLACK) | 1 | |
| 40 | 17550-ACR-000L | TANK COVER RR B (MATT GUN METAL S(D)-015M(F)) | 1 | |
| 41 | 17561-ACR-000T | TANK COVER FR TOP (MAT AXIS GRAY METALLIC) | 1 | |
| 41 | 17561-ACR-000G | TANK COVER FR TOP (PEARL BLACK) | 1 | |
