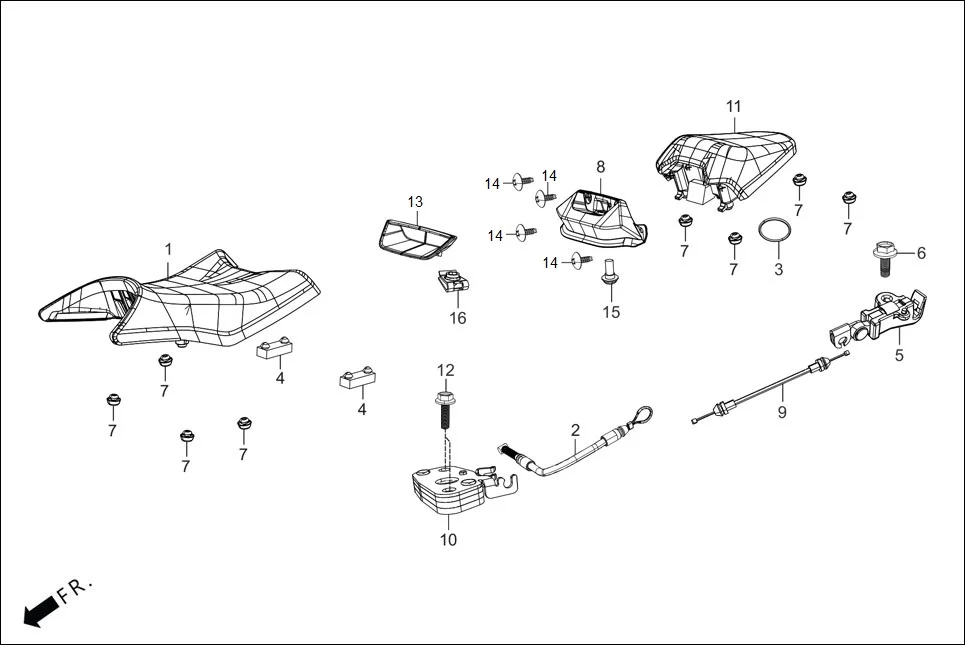

F-10 - SEAT ASSY.
Hero XTREME 160 4V PREMIUM(August,2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77100-ACR-300 | SEAT COMP. RIDER | 1 | |
| 2 | 77156-ABZ-000 | CABLE SEAT LOCK | 1 | |
| 3 | 80123-KCC-870 | BAND, TOOL | 1 | |
| 4 | 77205-KTN-700 | RUBBER B, SEAT SETTING | 2 | |
| 5 | 77220-KY6-000 | HOOK, SEAT CATCH | 2 | |
| 7 | 50354-428-000 | STOPPER,RUBBERB | 8 | |
| 8 | 77240-ACR-300 | PILLION FRONT COVER | 1 | |
| 9 | 77156-ACR-300 | CABLE SEAT LOCK | 1 | |
| 10 | 77170-ACF-000 | BRKT D COMP SEAT LOCK | 1 | |
| 11 | 77300-ACR-300 | SEAT COMP PILLION | 1 | |
| 12 | 95701-06022-07 | BOLT,FLANGE,6 X 22 | 2 | |
| 13 | 88140-ACR-300E | PILLION FRONT COVER ORNAMENT (MATT FUNK LIME YELLOW) | 1 | |
| 13 | 88140-ACR-300L | PILLION FRONT COVER ORNAMENT (MATT GUN METAL S(D)-015M(F)) | 1 | |
