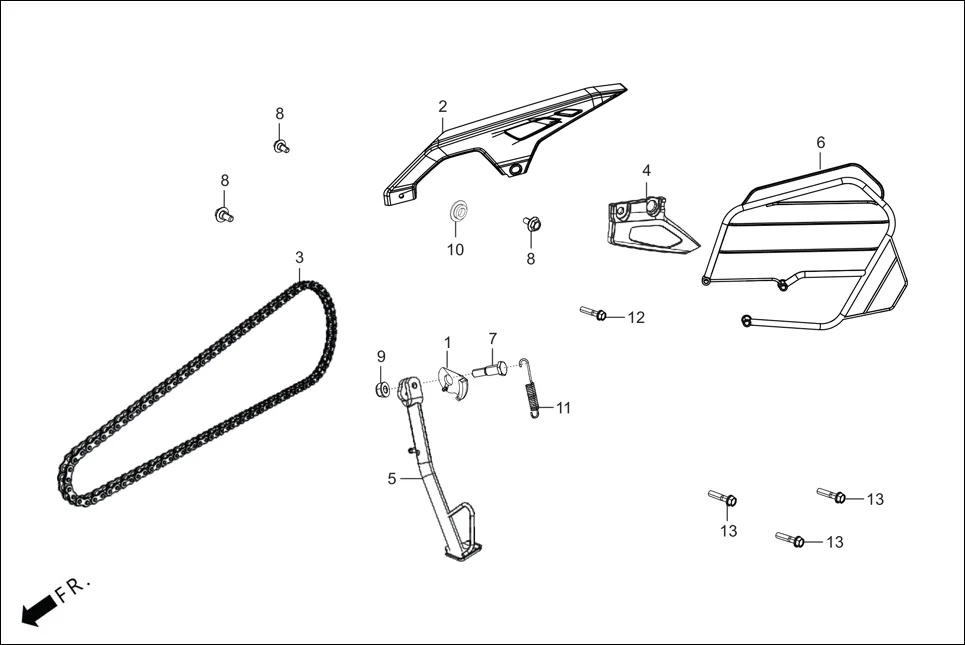

F-19A - CHAIN CASE & STAND
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-ACD-001 | MAGNET HOLDER ASSY | 1 | |
| 2 | 40510-ACY-100 | CHAIN CASE UPPER | 1 | |
| 3 | 40530-RAA-002 | CHAIN DRIV | 1 | |
| 4 | 40550-AAB-A00 | GUARD LOWER FINAL DRIVE | 1 | |
| 5 | 50530-ACY-100 | BAR COMP SIDE STAND | 1 | |
| 6 | ACYBF2H000000G | GUARD SAREE ASSY | 1 | |
| 7 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 8 | 90111-06014-0F | BOLT FLANGE 6MM DIA 16MM | 1 | |
| 9 | 90304-100F0 | NUT U 10 MM | 1 | |
| 10 | 90501-ABW-000 | COLLAR, CHAIN CASE | 1 | |
| 11 | 95014-72302 | SPRING, C SIDE STAND | 1 | |
| 12 | 95701-06016-0F | BOLT FLANGE 6X16 | 1 | |
| 13 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 3 | |
