HERO OEM Part

95701-06016-0F

BOLT FLANGE 6X16

Qty Required: 1 Ref #35 in Assembly

Part of Assembly

F-10-BASE
REAR BRAKE (MASTER CYLINDER)
31 parts in this assembly

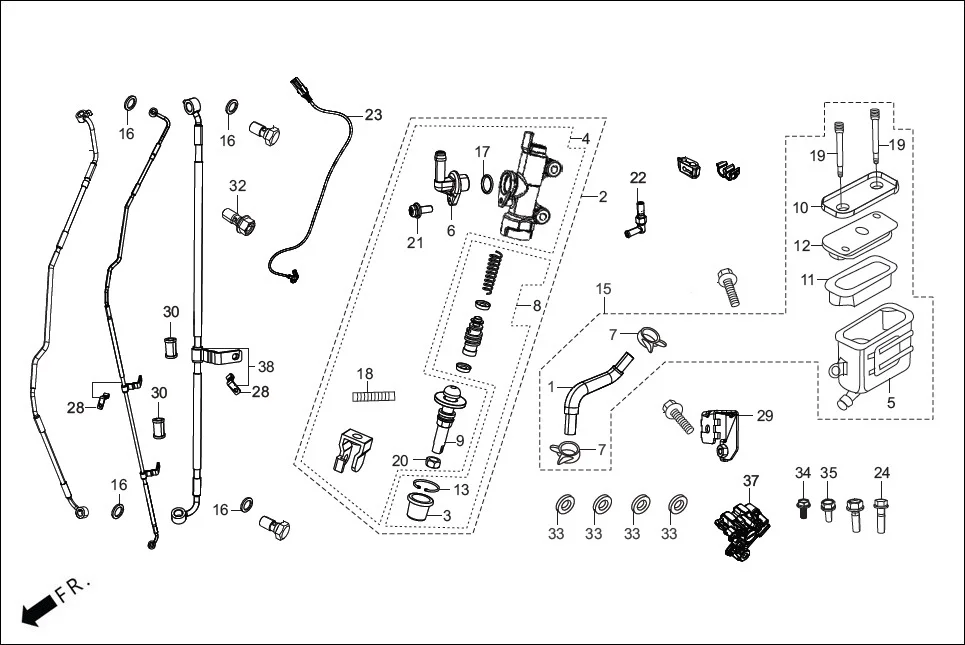

Assembly Diagram

F-10-BASE REAR BRAKE (MASTER CYLINDER) diagram showing 95701-06016-0F
Ref #35

Supported Vehicles4

HHERO XPULSE 210LC OBDIIP2 (MAR.,2025)
HERO XPULSE 210LC OBDIIP2 (MAR.,2025)
Current
HHERO MAVRICK(March 2024)
HERO MAVRICK(March 2024)
HHERO SPLENDOR PLUS(June,2024)
HERO SPLENDOR PLUS(June,2024)
HHERO THUMBSUP THUNDERWHEEL(Apr.,2025)
HERO THUMBSUP THUNDERWHEEL(Apr.,2025)

Related Parts

43512-ACY-110
HOSE COMP RR BRK MASTER CYL
43500-ACY-110
MASTER CYLINDER ASSY RR BRAKE
43504-MB2-006
BOOT COMP.
43510-ACY-110
SUB ASSY REAR MASTER CYL
43511-KW7-881
OIL CUP COMP.
43503-ABZ-010
CONNECTOR
View all 31 parts in this assembly
