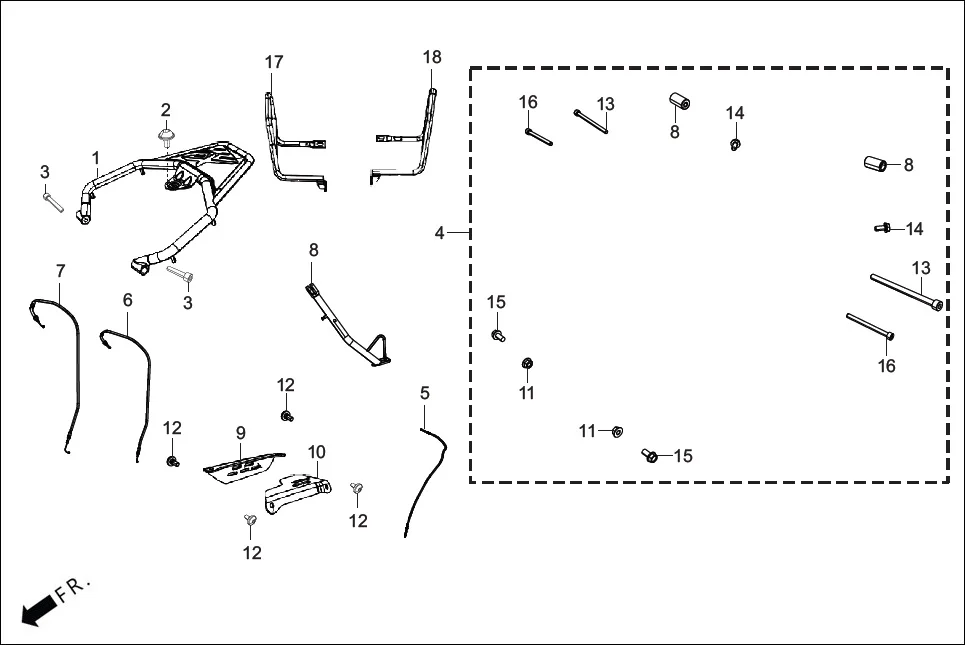

F-29A - (OPTIONAL)
Hero XPULSE 210LC OBDIIP2 (MAR.,2025) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50253-ACY-100 | LUGGAGE HOLDER REAR | 1 | |
| 2 | 90165-08018-0F | BOLT SP FLANGE SOCKET 8X18 | 1 | |
| 3 | 96700-08040-0W | SOCKET BOLT 8X40 | 2 | |
| 4 | 50250-ACY-100 | LUGGAGE CARRIER ASSY | 1 | |
| 5 | 22870-ACY-130 | CABLE COMP CLUTCH | 1 | |
| 6 | 17920-ACY-130 | CABLE COMP B THROT | 1 | |
| 7 | 17910-ACY-130 | CABLE COMP A THROT | 1 | |
| 8 | 50530-ACY-130 | BAR COMP SIDE STAND ASSY | 1 | |
| 11 | 94050-080E0 | NUT FLANGE 8MM | 2 | |
| 12 | 90001-06014-02 | SOCKET BOLT SPL M6X14 | 4 | |
| 13 | 96600-08125-01 | SOCKET BOLT 8X125 | 2 | |
| 14 | 95701-06014-0F | BOLT FLANGE 6X14 | 2 | |
| 15 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 2 | |
| 16 | 96600-08095-01 | SOCKET BOLT 8X95 | 2 | |
