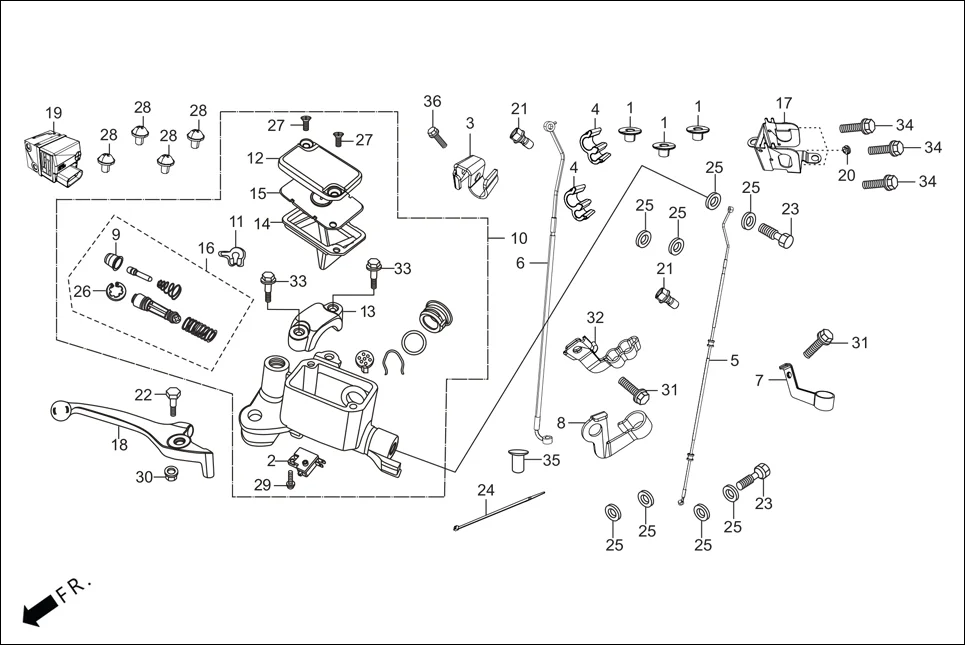

F-4A - FRONT BRAKE (MASTER CYLINDER) (ABS)
Hero XPULSE 200 OBDII 4V(April,2023) · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19052-AAB-A00 | COLLAR ABS UNIT MOUNTING | 3 | |
| 2 | 35340-MA5-670L | SW. ASSY. FR. STOP | 1 | |
| 3 | 38521-ABW-100 | CLAMPER SENSOR FR WHEEL SPEED | 1 | |
| 4 | 43301-AAB-A00 | CLIP BRAKE LINE | 2 | |
| 5 | 45126-ABW-900 | BRK HOSE ASSY. HECU TO CALIPER FR | 1 | |
| 6 | 45128-ABW-800 | BRK HOSE ASSY. HECU TO M/C | 1 | |
| 7 | 45154-ABW-000 | CLAMPER A FR. BRAKE | 1 | |
| 8 | 45156-ABW-100 | CLAMPER B FR.BRAKE | 1 | |
| 9 | 45504-410-003L | BOOT COMP. | 1 | |
| 10 | 45510-KRY-972 | M/C SUB ASSY., FRONT BRAKE | 1 | |
| 11 | 45512-MA6-006 | PROTECTOR | 1 | |
| 12 | 45513-HA2-006L | CAP M/C | 1 | |
| 14 | 45520-GE2-006 | DIAPHRAGM | 1 | |
| 15 | 45521-K21-901 | PLATE, DIAPHRAGM | 1 | |
| 16 | 45530-471-831L | CYLINDER SET MASTER | 1 | |
| 17 | 50207-ABW-100 | MT UPPER BRACKET ABS CONTROL UNIT | 1 | |
| 18 | 53175-KFN-850L | LEVER, RIGHT STRG. HANDLE | 1 | |
| 19 | 57111-ABW-L00 | HECU MINI MAB | 1 | |
| 20 | 83545-AAB-A00 | RUBBER ABS UNIT MOUNTING | 3 | |
| 21 | 90042-AAB-A00 | BANJO BOLT M10X1 | 2 | |
| 22 | 90114-166-000L | BOLT HANDLE LEVER | 1 | |
| 23 | 90145-MS9-610 | OIL BOLT, 10 X 22 | 2 | |
| 24 | 90652-AAW-300 | CABLE TIE | 4 | |
| 25 | 90545-ABZ-000 | WASHER OIL BOLT | 8 | |
| 26 | 90651-MA5-671L | CIRCLIP | 1 | |
| 27 | 93600-04012-1GL | SCREW FLAT 4X12 | 2 | |
| 28 | 93891-05008-00 | SCREW WASH 5X8 | 4 | |
| 29 | 93893-04012-17L | SCREW WASHER 4X12 | 1 | |
| 31 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 32 | 45157-ABW-100 | CLAMPER C FR. BRAKE | 1 | |
| 34 | 95701-06018-00 | BOLT FLANGE 6X18 | 3 | |
| 35 | 53174-116-670 | PLUG HANDLE LEVER | 1 | |
| 36 | 96600-05012-10 | BOLT SOCKET 5X12 | 1 | |
