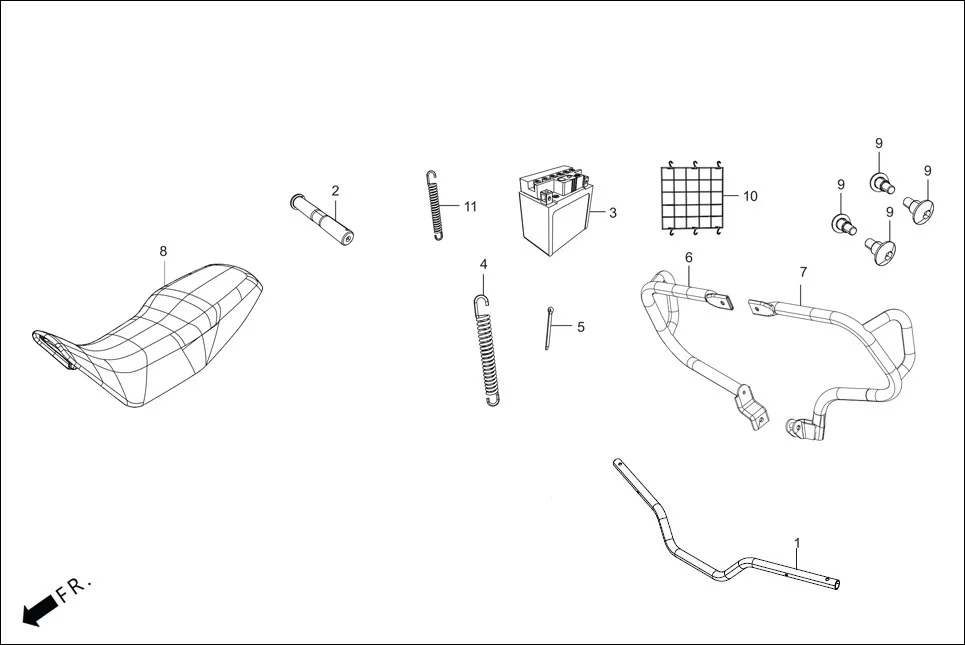

F-29 - (OPTIONAL)
Hero XPULSE 200 OBDII 4V(April,2023) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-ABW-L200 | PIPE STRG HANDLE | 1 | |
| 2 | 50526-KCT-690 | SHAFT, MAIN STAND PIVOT | 1 | |
| 3 | 31500-KRY-801 | BATTERY ASSY MF7 | 1 | |
| 4 | 95014-71702 | SPRING G MAIN STAND | 1 | |
| 5 | 94201-30300 | PIN, SPLIT 3 X 30MM | 1 | |
| 6 | 50803-ABW-900 | GUARD ENGINE R | 1 | |
| 7 | 50804-ABW-900 | GUARD ENGINE L | 1 | |
| 8 | 77200-ABW-110 | SEAT COMP DOUBLE | 1 | |
| 9 | 90113-ABW-L00 | BOLT SPECIAL HEX 6X16 | 4 | |
| 10 | 99670-AAE-300 | BUNGEE NET | 1 | |
| 11 | 95014-71202 | SPRING B., MAIN STAND | 1 | |
