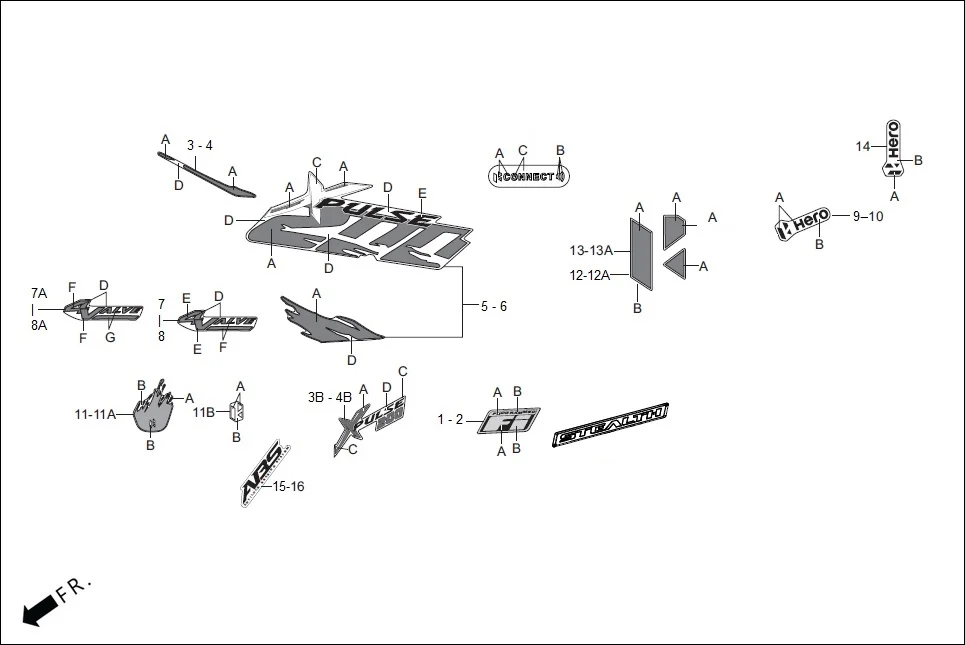

F-27_STAND - STRIPE/ MARKS
Hero XPULSE 200 OBDII 4V(April,2023) · 39 parts
Parts in This Assembly (39)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 85402-ABW-200R | PROGRAMMED FI MARK R SIDE (TYPE-1) | 1 | |
| 2 | 85403-ABW-200R | PROGRAMMED FI MARK L SIDE (TYPE-1) | 1 | |
| 3 | 86761-ABW-L00B | STRIPE A R FUEL TANK (TYPE-2) | 1 | |
| 3 | 86761-ABW-L00D | STRIPE A R FUEL TANK (TYPE-4) | 1 | |
| 3 | 86761-ABW-900W | STRIPE A R FUEL TANK (TYPE-4) | 1 | |
| 3 | 86761-ABW-L40U | STRIPE R FUEL TANK (TYPE-1) | 1 | |
| 4 | 86762-ABW-L00B | STRIPE A L FUEL TANK (TYPE-2) | 1 | |
| 4 | 86762-ABW-L00D | STRIPE A L FUEL TANK (TYPE-4) | 1 | |
| 4 | 86762-ABW-L00W | STRIPE A L FUEL TANK (TYPE-5) | 1 | |
| 4 | 86762-ABW-L40U | STRIPE L FUEL TANK (TYPE-1) | 1 | |
| 5 | 86763-ABW-L00B | STRIPE B R FUEL TANK (TYPE-2) | 1 | |
| 5 | 86763-ABW-L00D | STRIPE B R FUEL TANK (TYPE-4) | 1 | |
| 5 | 86763-ABW-L00W | STRIPE B R FUEL TANK (TYPE-5) | 1 | |
| 6 | 86764-ABW-L00B | STRIPE B L FUEL TANK (TYPE-2) | 1 | |
| 6 | 86764-ABW-L00D | STRIPE B L FUEL TANK (TYPE-4) | 1 | |
| 6 | 86764-ABW-L00W | STRIPE B L FUEL TANK (TYPE-5) | 1 | |
| 7 | 86767-ABW-900R | STRIPE D R FUEL TANK (TYPE-3) | 1 | |
| 7 | 86767-ABW-900W | STRIPE D R FUEL TANK (TYPE-4) | 1 | |
| 7 | 86767-ABW-L00D | STRIPE D R FUEL TANK (TYPE-2) | 1 | |
| 8 | 86768-ABW-900R | STRIPE D L FUEL TANK (TYPE-3) | 1 | |
| 8 | 86768-ABW-900W | STRIPE D L FUEL TANK (TYPE-4) | 1 | |
| 8 | 86768-ABW-L00D | STRIPE D L FUEL TANK (TYPE-2) | 1 | |
| 9 | 86771-ABW-900R | MARK HERO ACC MOUNTING COVER R (TYPE-2) | 1 | |
| 9 | 86771-ABW-900S | MARK HERO ACC MOUNTING COVER R (TYPE-1) | 1 | |
| 10 | 86772-ABW-900R | MARK HERO ACC MOUNTING COVER L (TYPE-1) | 1 | |
| 10 | 86772-ABW-900S | MARK HERO ACC MOUNTING COVER L (TYPE-1) | 1 | |
| 11 | 86776-ABW-900V | STRIPE FR FENDER (TYPE-3) | 1 | |
| 11 | 86776-ABW-900W | STRIPE FR FENDER (TYPE-4) | 1 | |
| 11 | 86776-ABW-L00B | STRIPE FR FENDER (TYPE-2) | 1 | |
| 11 | 86776-ABW-L40U | STRIPE FR FENDER (TYPE-1) | 1 | |
| 12 | 86783-ABW-900W | STRIPE SIDE COVER A R SIDE (TYPE-4) | 1 | |
| 12 | 86783-ABW-L00B | STRIPE SIDE COVER A R SIDE (TYPE-2) | 1 | |
| 12 | 86783-ABW-L00D | STRIPE SIDE COVER A R SIDE (TYPE-4) | 1 | |
| 13 | 86784-ABW-900W | STRIPE SIDE COVER A L SIDE (TYPE-4) | 1 | |
| 13 | 86784-ABW-L00B | STRIPE SIDE COVER A L SIDE (TYPE-2) | 1 | |
| 13 | 86784-ABW-L00D | STRIPE SIDE COVER A L SIDE (TYPE-4) | 1 | |
| 14 | 86785-ABW-000R | MARK HERO TAIL LGHT COVER (TYPE-1) | 1 | |
| 15 | 86787-ABW-300R | MARK ABS R SIDE (TYPE-1) | 1 | |
| 16 | 86788-ABW-300R | MARK ABS L SIDE (TYPE-1) | 1 | |
