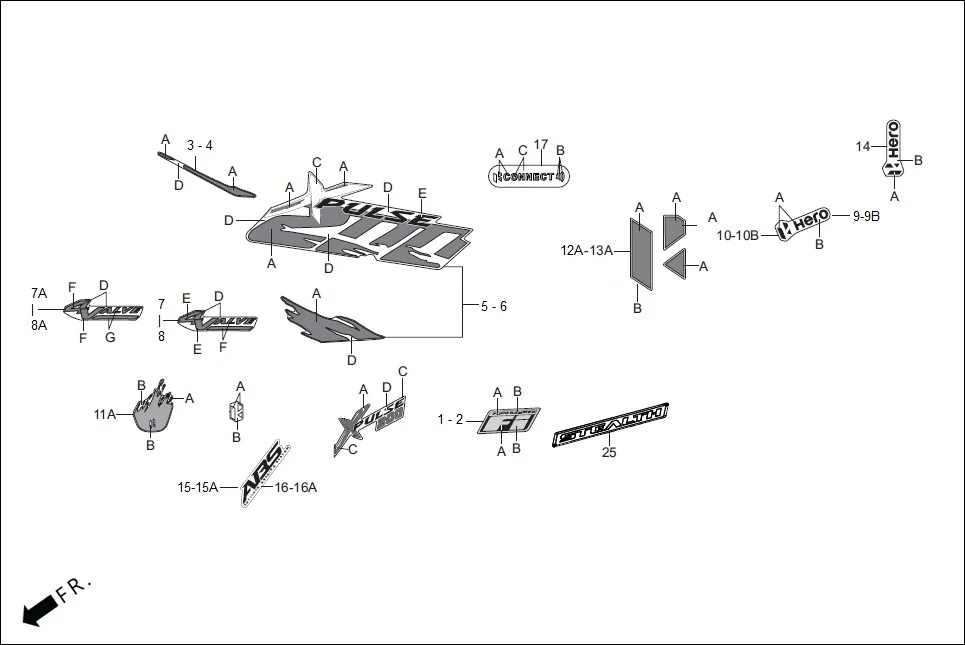

F-27_CONNECT - STRIPE/ MARKS
Hero XPULSE 200 OBDII 4V(April,2023) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 86761-ABW-L00A | STRIPE A R FUEL TANK (TYPE-1) | 1 | |
| 3 | 86761-ABW-L00C | STRIPE A R FUEL TANK (TYPE-3) | 1 | |
| 4 | 86762-ABW-L00A | STRIPE A L FUEL TANK (TYPE-1) | 1 | |
| 4 | 86762-ABW-L00C | STRIPE A L FUEL TANK (TYPE-3) | 1 | |
| 5 | 86763-ABW-L00A | STRIPE B R FUEL TANK (TYPE-1) | 1 | |
| 5 | 86763-ABW-L00C | STRIPE B R FUEL TANK (TYPE-3) | 1 | |
| 6 | 86764-ABW-L00A | STRIPE B L FUEL TANK (TYPE-1) | 1 | |
| 6 | 86764-ABW-L00C | STRIPE B L FUEL TANK (TYPE-3) | 1 | |
| 7 | 86767-ABW-900R | STRIPE D R FUEL TANK (TYPE-3) | 1 | |
| 7 | 86767-ABW-L00C | STRIPE D R FUEL TANK (TYPE-1) | 1 | |
| 8 | 86768-ABW-900R | STRIPE D L FUEL TANK (TYPE-3) | 1 | |
| 8 | 86768-ABW-L00C | STRIPE D L FUEL TANK (TYPE-1) | 1 | |
| 9 | 86771-ABW-900S | MARK HERO ACC MOUNTING COVER R (TYPE-1) | 1 | |
| 9 | 86771-ABW-L20C | MARK HERO ACC MOUNTING COVER R (TYPE-1) | 1 | |
| 10 | 86772-ABW-900S | MARK HERO ACC MOUNTING COVER L (TYPE-1) | 1 | |
| 10 | 86772-ABW-L20C | MARK HERO ACC MOUNTING COVER L (TYPE-1) | 1 | |
| 11 | 86776-ABW-L00A | STRIPE FR FENDER (TYPE-1) | 1 | |
| 11 | 86776-ABW-L00C | STRIPE FR FENDER (TYPE-3) | 1 | |
| 12 | 86783-ABW-L00A | STRIPE SIDE COVER A R SIDE (TYPE-1) | 1 | |
| 12 | 86783-ABW-L00C | STRIPE SIDE COVER A R SIDE (TYPE-3) | 1 | |
| 13 | 86784-ABW-L00A | STRIPE SIDE COVER A L SIDE (TYPE-1) | 1 | |
| 13 | 86784-ABW-L00C | STRIPE SIDE COVER A L SIDE (TYPE-3) | 1 | |
| 15 | 86787-ABW-300R | MARK ABS R SIDE (TYPE-1) | 1 | |
| 16 | 86788-ABW-300R | MARK ABS L SIDE (TYPE-1) | 1 | |
| 17 | 86280-ABW-L20A | CONNECT LOGO (TYPE-1) | 1 | |
| 17 | 86280-ABW-L20C | CONNECT LOGO (TYPE-2) | 1 | |
| 25 | 83833-ABH-700 | EMBLEM STEALTH | 1 | |
