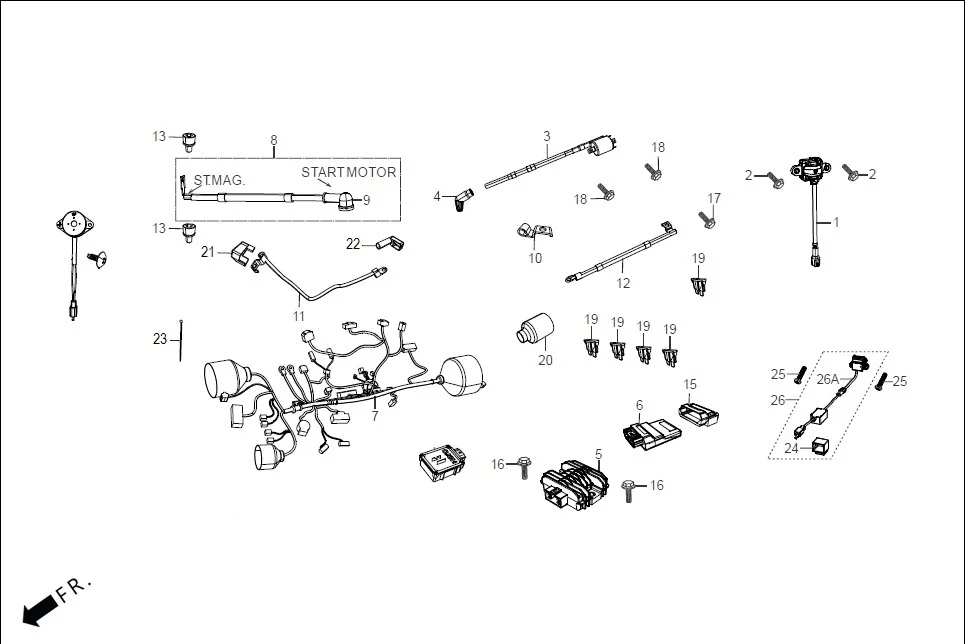

F-24_PRO - ELECTRICALS (WIRE HARNESS/START CABLES)
Hero XPULSE 200 OBDII 4V(April,2023) · 30 parts
Parts in This Assembly (30)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35160-AAE-31099 | SENSOR ASSY BANK ANGLE | 2 | |
| 2 | 90002-KRM-840 | BOLT, FLANGE 5X14 | 1 | |
| 3 | 30510-ABW-801 | COIL COMP. IGNITION | 1 | |
| 4 | 30700-ABW-801 | CAP ASSY. NOISE (SUPPRESSOR) | 1 | |
| 5 | 31600-AAC-B02 | REG RECT COMP | 1 | |
| 6 | 38770-ABW-L01 | UNIT COMP. ECU | 1 | |
| 7 | 32100-ABW-L00 | HARNESS WIRE | 1 | |
| 8 | 32410-ABW-000 | CABLE START MOTOR | 1 | |
| 9 | 32411-253-000 | COVER, STARTING MOTOR | 1 | |
| 10 | 32413-KRY-970 | TERMINAL, BAT CABLE | 1 | |
| 11 | 32601-AAB-A00 | CABLE BAT EARTH | 1 | |
| 12 | 32602-ABZ-000 | CABLE ENG EARTH | 1 | |
| 13 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 14 | 91540-AAN-410 | CLIP, BAND HARN | 3 | |
| 15 | 38771-ABW-L00 | CUSHION. PGM-FI/IGN UNIT | 1 | |
| 16 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 17 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 1 | |
| 18 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 19 | 98210-HMC-000 | MINI FUSE 10A | 5 | |
| 20 | 32108-KE8-000 | COVER ,CONNECTOR | 1 | |
| 21 | 32406-ABW-000 | COVER ST.MAG.TERMINAL | 1 | |
| 22 | 32417-KTR-A10 | COVER, BAT. TERMINAL | 1 | |
| 23 | 90657-AAW-300 | CABLE TIE (LONG) | 1 | |
| 25 | 93500-04016-0G | SCREW PAN 4X16 | 2 | |
| 26 | 31300-ABW-L01 | USB CHARGER ASSY. | 1 | |
| 26 | 31300-ABW-L02 | USB CHARGER ASSY | 1 | |
| 26 | 31304-ABW-L01 | USB CHARGER | 1 | |
| 26 | 31304-ABW-L02 | USB CHARGER | 1 | |
| 27 | 31307-ABZ-601 | CUSHION USB UNIT | 1 | |
| 27 | 31307-ACK-421 | CUSHION USB UNIT | 1 | |
