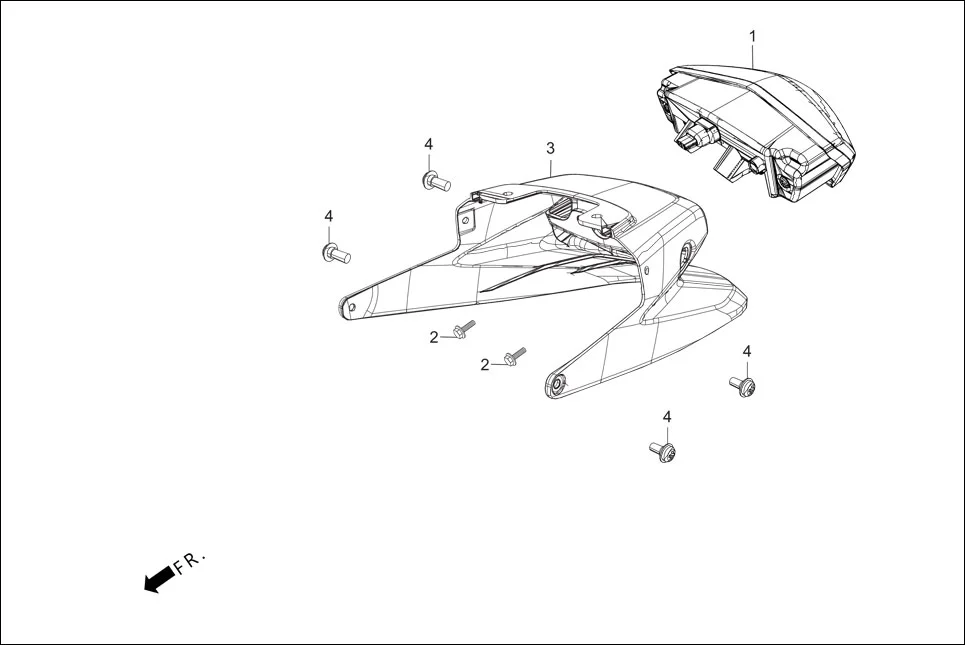

F-22 - TAIL LIGHT
Hero XPULSE 200 OBDII 4V(April,2023) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33700-ABW-001 | UNIT TAIL LIGHT | 1 | |
| 2 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 3 | 88100-ABW-100R | SET TAIL LIGHT COVER (BLACK NH-1) | 1 | |
| 4 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
