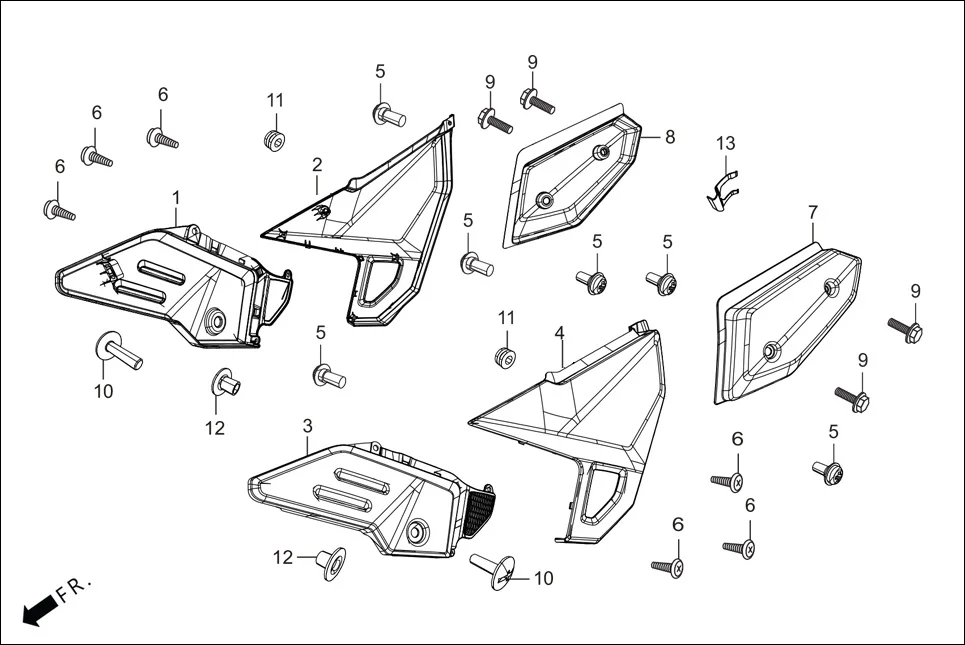

F-12_PRO - SIDE COVER
Hero XPULSE 200 OBDII 4V(April,2023) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83700-ABW-300R | SET COVER B, R SIDE (MAGM, NH-303M) | 1 | |
| 2 | 83500-ABW-L30R | SET COVER A R SIDE (PEARL FADELESS WHITE) | 1 | |
| 3 | 83800-ABW-300R | SET COVER B, L SIDE (MAGM, NH-303M) | 1 | |
| 4 | 83600-ABW-L30R | SET COVER A L SIDE (PEARL FADELESS WHITE) | 1 | |
| 5 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 6 | 93903-34210 | SCREW TAPPING 4X10 | 6 | |
| 7 | 77245-ADR-000R | SET ACC. MOUNTING COVER L | 1 | |
| 8 | 77235-ADR-000R | SET ACC. MOUNTING COVER R | 1 | |
| 9 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 4 | |
| 10 | 90105-KVE-860 | BOLT,SPECIAL 6X22 | 2 | |
| 11 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 12 | 19052-KV0-000 | COLLAR, RADIATOR MTG | 2 | |
| 13 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
