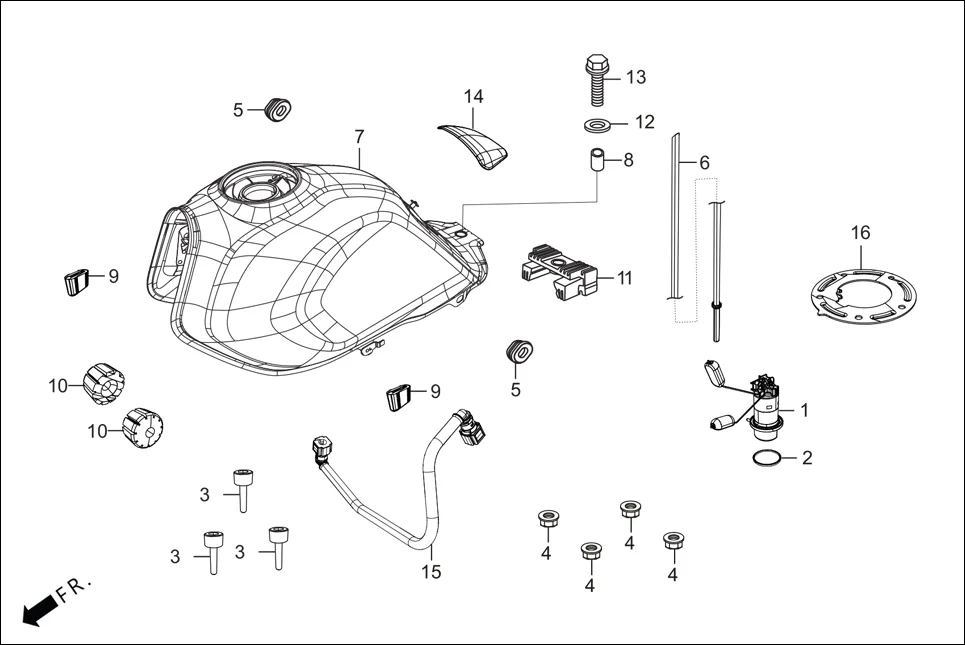

F-11_CONNECT - FUEL TANK / FUEL UNIT
Hero XPULSE 200 OBDII 4V(April,2023) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-ABW-201 | UNIT ASSY FUEL PUMP | 1 | |
| 2 | 17572-ABW-L00 | GASKET FUEL PUMP | 1 | |
| 3 | 90074-KVE-900 | BOLT SOCKET 4 X 21 | 3 | |
| 4 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 5 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 6 | 1719A-ABW-L00 | TUBE DRAIN | 1 | |
| 7 | 17520-ABW-L00A | SET FUEL TANK (MOON YELLOW) | 1 | |
| 7 | 17520-ABW-L00C | SET FUEL TANK (MAT AXIS GRAY METALLIC)(STEALTH) | 1 | |
| 8 | 90324-KCC-900 | COLLAR, 8 MM | 1 | |
| 9 | 77267-KTR-900 | RUBBER, COWL | 2 | |
| 10 | 17611-KRY-970 | CUSHION , FRONT FUEL TANK | 2 | |
| 11 | 17613-KCC-900 | CUSHION, RR. TANK | 1 | |
| 12 | 90534-MV4-000 | WASHER ,8.5X28 | 1 | |
| 13 | 95701-08032-00 | BOLT, FLANGE, 8×32 | 1 | |
| 14 | 17547-ABW-100 | PAD FUEL TANK MIDDLE | 1 | |
| 15 | 17570-ABW-800 | FUEL HOSE | 1 | |
| 16 | 17521-ABW-200 | PLATE SETTING | 1 | |
