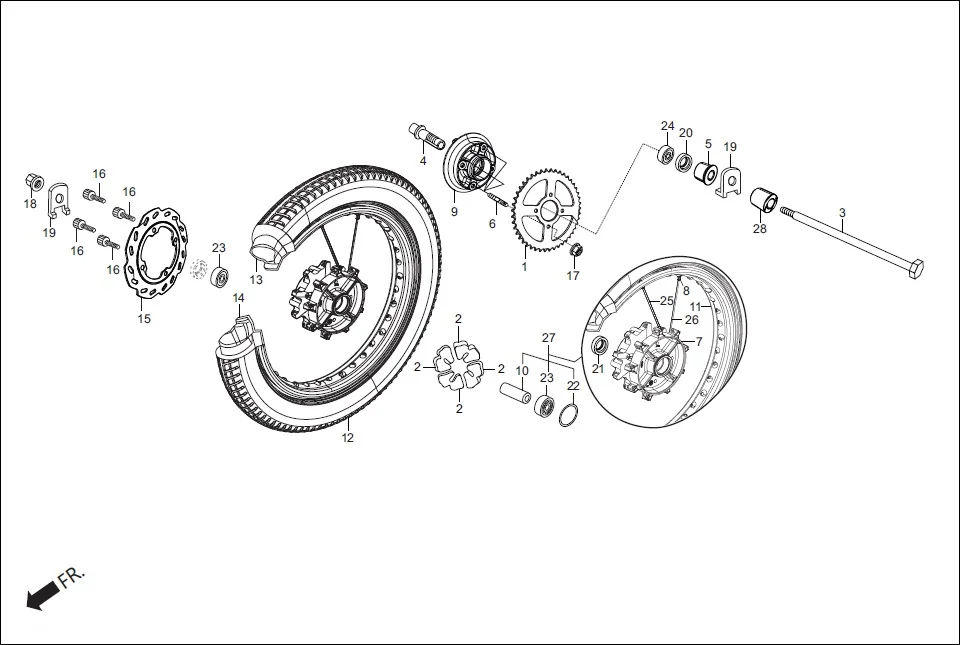

F-9 - RR WHEEL / FLANGE ASSY. DRIVEN
Hero Xpulse 200 4V(July 2022) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 41201-ABW-900 | SPROCKET FINAL DRIVEN 45T | 1 | |
| 2 | 41241-KSP-900 | DAMPER, RR WHEEL | 4 | |
| 3 | 42301-AAB-A00 | AXLE RR WHEEL | 1 | |
| 4 | 42303-AAB-A00 | SLEEVE REAR WHEEL | 1 | |
| 5 | 42311-AAB-A00 | COLLAR RR WHEEL SIDE(LH) | 1 | |
| 6 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
| 7 | 42601-ABW-100 | HUB REAR WHEEL | 1 | |
| 8 | 42603-ABW-100 | NIPPLE SPOKE REAR | 36 | |
| 9 | 42611-KRY-930 | FLANGE, FINAL DRIVEN(NH-35M) | 1 | |
| 10 | 42620-AAR-000 | COLLAR RR AXLE DISTANCE | 1 | |
| 11 | 42701-ABW-100 | RIM REAR WHEEL | 1 | |
| 12 | 42711-ABW-103 | TYRE REAR | 1 | |
| 13 | 42712-ABW-103099 | TUBE REAR, 120/80-18,TTK | 1 | |
| 13 | 42712-ABW-111 | TUBE REAR | 1 | |
| 14 | 42713-ABW-100 | FLAP, TYRE REAR | 1 | |
| 15 | 43251-ABZ-010 | DISC, RR BRAKE | 1 | |
| 17 | 90304-KCS-920 | NUT`U 10 MM | 4 | |
| 18 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 19 | 90560-KVE-900 | WASHER, R RR. AXLE | 2 | |
| 20 | 91253-KSP-901 | DUST SEAL, 30 X 47 X 8 | 1 | |
| 21 | 91257-230-003 | OIL SEAL 28X42X7 | 1 | |
| 22 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 23 | 96140-63020-10 | BRG., BALL RADIAL, 6302 (U) | 2 | |
| 24 | 96150-60050-10 | BEARING, BALL RADIAL, 6005 | 1 | |
| 25 | 97252-ABW-100 | SPOKE REAR B | 18 | |
| 26 | 97660-ABW-100 | SPOKE REAR A | 18 | |
| 27 | 42650-ABW-100 | WHEEL SUB ASSY. REAR | 1 | |
| 28 | 42313-ABW-100 | COLLAR RR BRAKE PANEL SIDE | 1 | |
