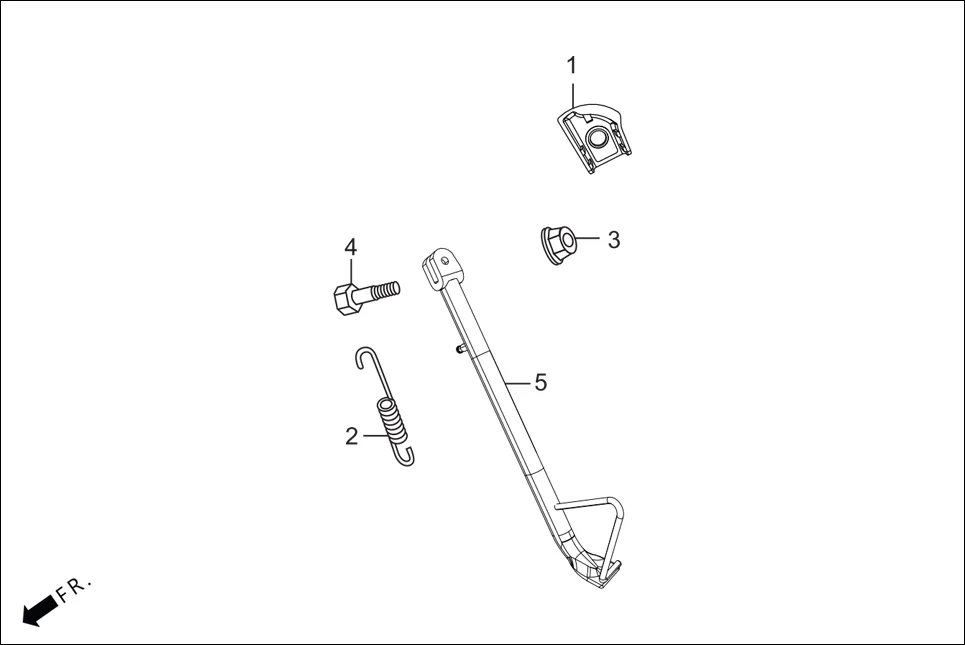

F-18 - CHAIN CASE & STAND
Hero Xpulse 200 4V(July 2022) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35130-AAB-000 | MAGNET HOLDER ASSY. | 1 | |
| 2 | 95014-71202 | SPRING B., MAIN STAND | 1 | |
| 3 | 90304-KFN-850 | NUT U 10 MM | 1 | |
| 3 | 90304-KCS-920 | NUT`U 10 MM | 1 | |
| 4 | 90107-AAB-000 | SCREW SIDE STAND PIVOT | 1 | |
| 5 | 50530-ABW-110 | BAR COMP. SIDE STAND | 1 | |
