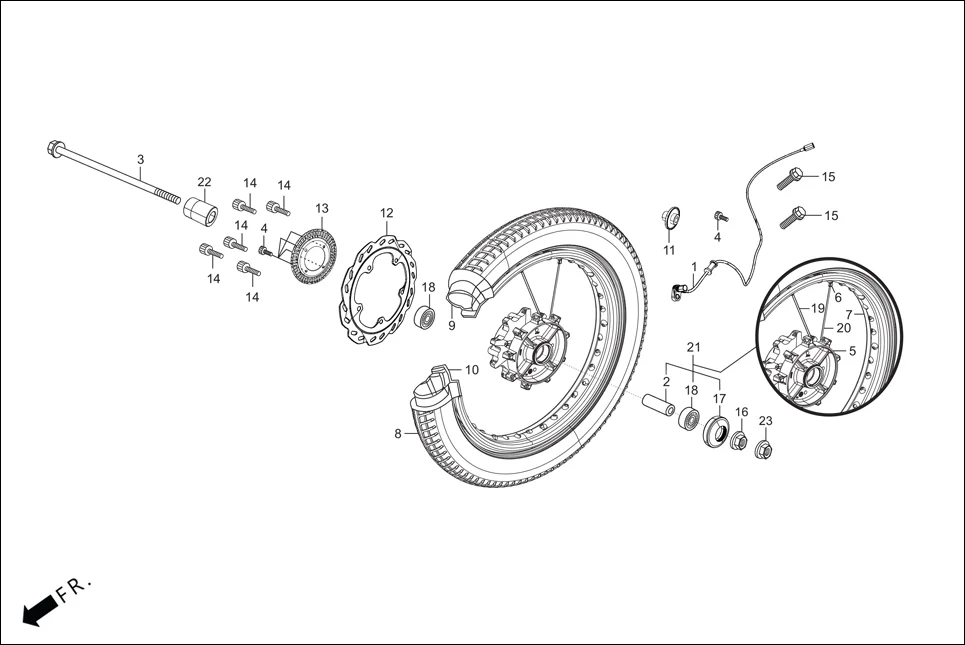

F-7 - FRONT WHEEL
Hero Xpulse 200 4V(July 2022) · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 38520-ADR-000 | SENSOR FRONT WHEEL SPEED | 1 | |
| 2 | 42620-KTR-700 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 3 | 44301-AAB-A00 | AXLE FR WHEEL | 1 | |
| 4 | 96600-05012-10 | BOLT SOCKET 5X12 | 5 | |
| 5 | 44601-ABW-100 | HUB FRONT WHEEL | 1 | |
| 6 | 44603-ABW-100 | NIPPLE SPOKE FRONT | 36 | |
| 7 | 44701-ABW-100 | RIM FRONT WHEEL | 1 | |
| 8 | 44711-ABW-103 | TYRE FRONT | 1 | |
| 9 | 44712-ABW-103099 | TUBE FRONT, 90/90-21,TTK | 1 | |
| 10 | 44713-ABW-100 | FLAP, TYRE FRONT | 1 | |
| 11 | 44802-AAB-A00 | SLEEVE FR WHEEL (LH) | 1 | |
| 12 | 45251-ABZ-010 | DISK, FR BRAKE | 1 | |
| 13 | 45252-AAB-A00 | SENSOR RING FR DISC | 1 | |
| 14 | 90105-KL8-741 | BOLT, FR.DISK, 8 X 24 | 5 | |
| 15 | 90155-ABW-000 | BOLT FLANGE 8X45 | 2 | |
| 16 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 17 | 90755-229-000 | OIL SEAL, 21 X 37 X 7 | 1 | |
| 18 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 19 | 97278-ABW-100 | SPOKE FRONT B | 18 | |
| 20 | 97550-ABW-100 | SPOKE FRONT A | 18 | |
| 21 | 44650-ABW-100 | WHEEL SUB ASSY. FR. | 1 | |
| 22 | 44311-ABW-100 | COLLAR, FR WHEEL SIDE | 1 | |
| 23 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
