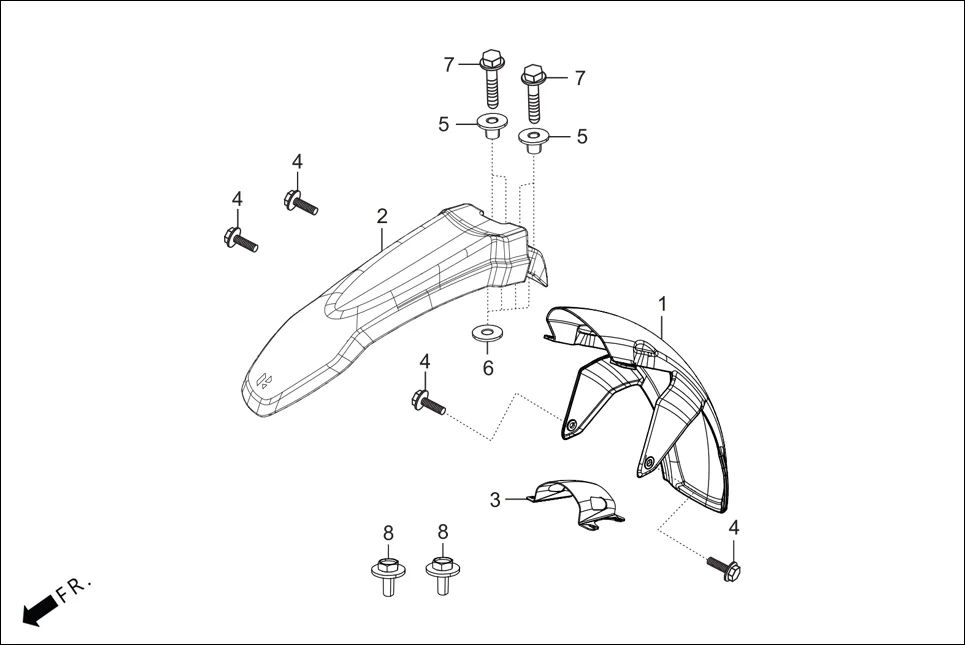

F-5 - FRONT FENDER
Hero Xpulse 200 4V(July 2022) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61100-ABW-100 | FR FENDER A | 1 | |
| 2 | 61000-ADR-000R | SET FENDER B FRONT (PEARL FADELESS WHITE NH-341P) | 1 | |
| 3 | 61102-ABW-100 | STAY FRONT FENDER | 1 | |
| 4 | 90111-187-000 | BOLT, FLANGE. 6 MM | 4 | |
| 5 | 90502-KVE-900 | COLLAR RUBBER CUSHION | 4 | |
| 6 | 90525-030-000 | WASHER, PLAIN | 4 | |
| 8 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 2 | |
