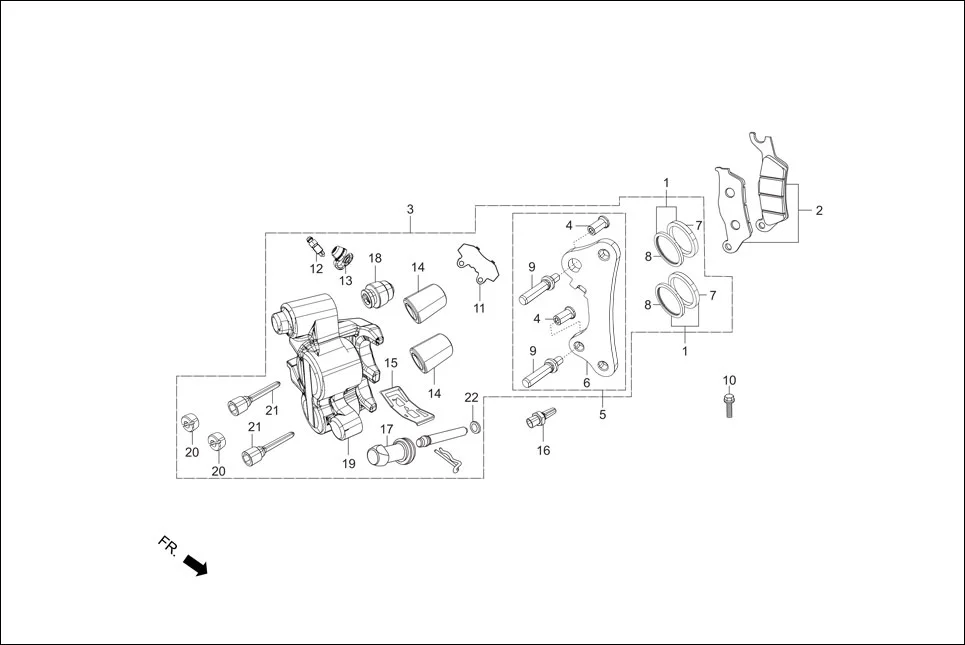

F-4B - FRONT BRAKE (CALIPER ASSY ‘R’ FR.)
Hero Xpulse 200 4V(July 2022) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-GE2-405L | SEAL SET PISTON | 2 | |
| 2 | 06455-GCR-016L | PAD SET FRONT | 1 | |
| 3 | 45250-KRY-901 | CALIPER SUB ASSY., R FR | 1 | |
| 4 | 45216-KW6-901L | TORQUE NUT | 2 | |
| 5 | 45290-KGB-611L | BRKT.SUB ASSY.R FR.CALIPER | 1 | |
| 6 | 45210-KR3-871L | BRACKET RIGHT | 1 | |
| 7 | 45209-GE2-006L | SEAL PISTON | 2 | |
| 8 | 45109-GE2-006L | DUST SEAL | 2 | |
| 9 | 45131-GE2-006L | PIN BOLT A | 2 | |
| 10 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 11 | 43114-KW6-842L | SHIM B | 1 | |
| 12 | 43352-568-003L | SCREW BLEEDER | 1 | |
| 13 | 43353-461-771L | CAP BLEEDER | 1 | |
| 14 | 45107-MN5-006L | PISTON | 2 | |
| 15 | 45108-ML4-006L | PAD SPRING | 1 | |
| 16 | 45131-GZ0-006L | PIN BOLT | 1 | |
| 17 | 45132-166-016L | BUSH BOOT PIN | 1 | |
| 18 | 45133-MA3-006L | BOOT B | 1 | |
| 19 | 45201-GT4-691L | BODY CALIPER FR. | 1 | |
| 20 | 45203-MG3-016L | PLUG PIN | 2 | |
| 21 | 45215-KA3-732L | PIN HANGER | 2 | |
| 22 | 45216-166-006L | WASHER WAVE | 1 | |
