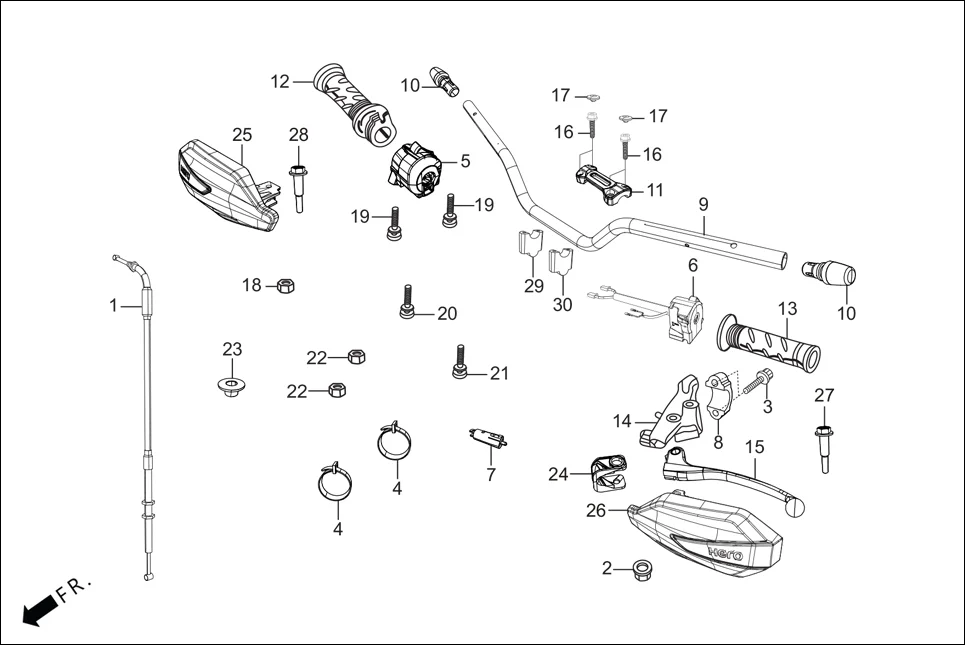

F-3B - HANDLE & HNDL COVER (HANDLE LEVER/SWITCH/CABLES)
Hero Xpulse 200 4V(July 2022) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-ABW-800 | CABLE COMP. THROT | 1 | |
| 3 | 96001-06022-07 | BOLT, FLANGE, SH.6X22 | 2 | |
| 4 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 5 | 35150-ABZ-001 | SW. ASSY. ENG. ST. & START | 1 | |
| 6 | 35200-ABW-801 | SW. ASSY. WINKER | 1 | |
| 7 | 35330-413-003 | SW. COMP., FR. LEVER | 1 | |
| 8 | 45517-166-000 | HOLDER, MASTER CYLINDER | 1 | |
| 9 | 53100-ABW-900 | PIPE STRG HANDLE | 1 | |
| 10 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 11 | 53131-ABW-200 | HOLDER HANDLE UP | 1 | |
| 12 | 53140-KVE-860 | GRIP COMP THROT | 1 | |
| 13 | 53166-KVE-860 | GRIP L HANDLE | 1 | |
| 14 | 53172-KRC-900 | BRACKET, HANDLE LEVER | 1 | |
| 15 | 53178-KFN-850 | LEVER COMP., L HANDLE | 1 | |
| 16 | 96700-06065-10 | SOCKET BOLT 6X65. | 4 | |
| 17 | 91455-MG8-000 | CAP, SOC BOLT 6 MM | 4 | |
| 18 | 94002-10070-0S | NUT, HEX., 10MM | 1 | |
| 19 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 22 | 94002-06000-0S | NUT, HEX 6MM | 2 | |
| 23 | 90501-ABW-E00 | COLLAR 7MM | 1 | |
| 24 | 53184-AAM-410 | HAND GUARD STOPPER LH | 1 | |
| 25 | 53181-ABW-100Z | HAND GUARD RH (PIGMENTED WHITE) | 1 | |
| 26 | 53182-ABW-100Z | HAND GUARD LH (PIGMENTED WHITE) | 1 | |
| 27 | 90113-AAM-410 | BOLT HNDL. LEVER PIVOT | 1 | |
| 28 | 90114-AAM-400 | BOLT LEVER PIVOT | 1 | |
| 29 | 53111-ABW-310 | HANDLE BAR RISER R | 1 | |
