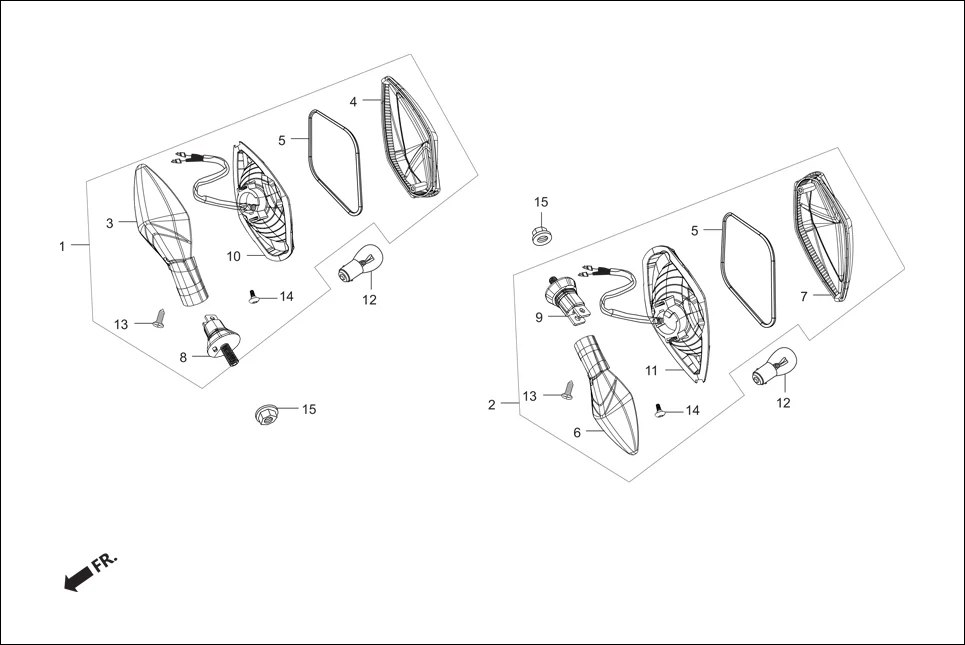

F-21A - REAR WINKER
Hero Xpulse 200 4V(July 2022) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3360B-ABW-001 | WINKER ASSY R RR | 1 | |
| 2 | 3365B-ABW-001 | WINKER ASSY L RR | 1 | |
| 3 | 33401-AAR-001 | HOUSING R | 1 | |
| 4 | 33402-AAS-001 | LENS, RIGHT | 1 | |
| 5 | 33408-AAR-001 | PACKING | 2 | |
| 6 | 33451-AAR-001 | HOUSING L | 1 | |
| 7 | 33452-AAS-001 | LENS, LEFT | 1 | |
| 8 | 33491-ABW-001 | STAY COMP WINKER R | 1 | |
| 9 | 33496-ABW-001 | STAY COMP WINKER L | 1 | |
| 10 | 33605-AAN-40099 | REFLECTOR COMP R WINKER ASSY. | 1 | |
| 11 | 33655-AAN-40099 | REFLECTOR COMP L WINKER ASSY. | 1 | |
| 12 | 34930-AAC-700 | BULB(12V 10W) AMBER | 2 | |
| 13 | 90380-AAR-001 | SCREW SPECIAL | 2 | |
| 14 | 93901-AAR-001 | ST. SCREW 3X10 | 2 | |
| 15 | 94050-08000 | NUT, FLANGE, 8MM | 2 | |
