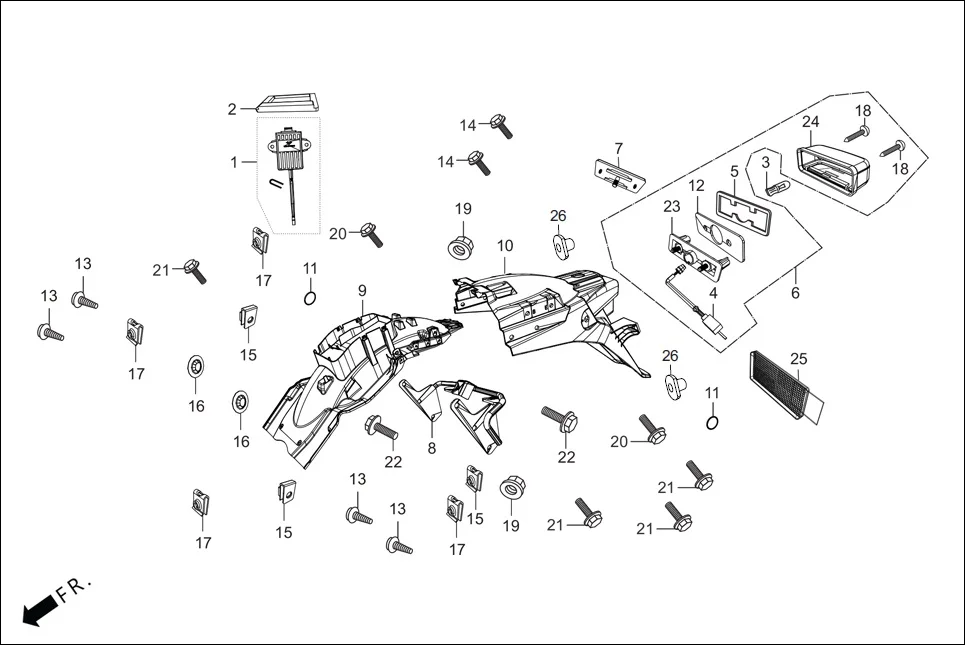

F-20 - REAR FENDER
Hero Xpulse 200 4V(July 2022) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31300-AAT-001 | USB CHARGER ASSY | 1 | |
| 2 | 31301-AAW-001 | GASKET, USB CHARGER | 1 | |
| 3 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 4 | 33721-ABW-001 | SOCKET COMP. DOMESTIC | 1 | |
| 5 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 6 | 3372B-ABW-001 | LIGHT ASSY. LICENSE | 1 | |
| 7 | 33743-AAR-001 | REFLEX REFLECTOR SIDE | 1 | |
| 8 | 50190-ABW-000 | STAY COMP. RR FENDER | 1 | |
| 9 | 80100-ABW-100 | RR FENDER A | 1 | |
| 10 | 80110-ABW-100 | RR FENDER B | 1 | |
| 11 | 80123-KCC-870 | BAND, TOOL | 2 | |
| 12 | 80203-KVE-900 | RUBBER LICENSE LIGHT | 1 | |
| 13 | 90101-GE0-000 | SCREW, HINGE PATCH | 4 | |
| 14 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 15 | 90311-MT3-000 | NUT, CLIP, 6 MM | 2 | |
| 16 | 90313-ABW-B00 | SPEED NUT 4MM | 2 | |
| 17 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 18 | 93903-34380 | SCREW, TAPPING, 4X12 | 2 | |
| 19 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 20 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 2 | |
| 21 | 96001-06018-07 | BOLT FLANGE SH 6X18 | 4 | |
| 22 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 23 | 33722-AAG-00099 | BASE COMP | 1 | |
| 24 | 33723-AAG-00099 | COVER COMP | 1 | |
| 25 | 33741-ABZ-001 | REFLEX REFLECTOR REAR | 1 | |
| 26 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
