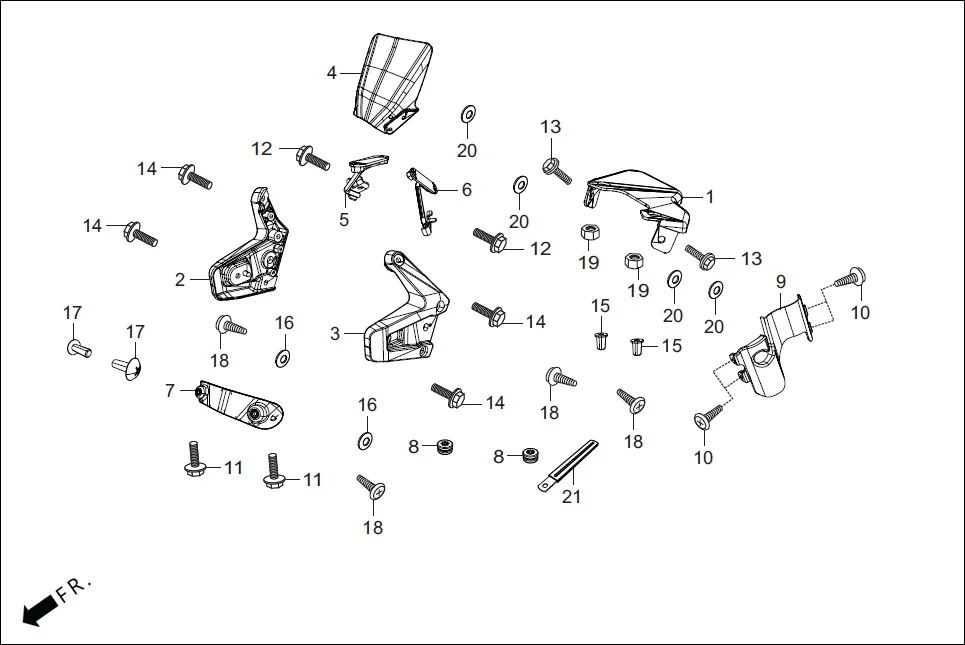

F-1A - FAIRING (FR. VISOR/COWL/STAY)
Hero Xpulse 200 4V(July 2022) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61312-ABW-000 | STAY METER MTG. | 1 | |
| 2 | 61313-ABW-900 | BRACKET HEADLIGHT R | 1 | |
| 3 | 61314-ABW-900 | BRACKET HEADLIGHT L | 1 | |
| 4 | 64140-ABW-100 | SCREEN WIND | 1 | |
| 5 | 64141-ABW-000 | STAY SCREEN WIND R COMP | 1 | |
| 6 | 64142-ABW-000 | STAY SCREEN WIND L COMP | 1 | |
| 7 | 64315-ABW-100 | STAY FR NO PLATE COMP | 1 | |
| 8 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 2 | |
| 9 | 83402-ABW-000 | PANEL INNER | 1 | |
| 10 | 93500-05010-1A | SCREW, PAN, 5X10 | 4 | |
| 11 | 96001-06010-00 | BOLT FLANGE SH. 6×10 | 2 | |
| 13 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 2 | |
| 14 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 4 | |
| 15 | 90111-KW3-000 | NUT COWL SET M5X0.8 | 2 | |
| 16 | 90504-964-000 | WASHER, THRUST, 5MM | 2 | |
| 17 | 91410-ABW-000 | CLIP 3X130 | 1 | |
| 18 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 19 | 94001-06000-0S | NUT, HEX., 6 MM | 2 | |
| 20 | 90504-KWA-940 | WASHER SCREEN | 4 | |
