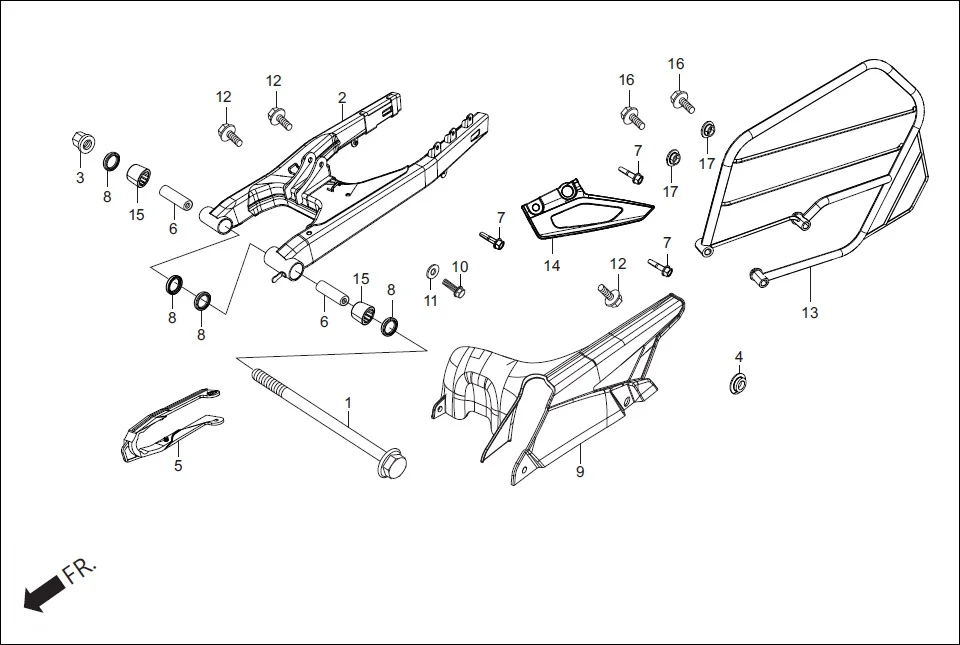

F-18A - SWINGARM / GUARD SAREE / CHAIN CASE
Hero Xpulse 200 4V(July 2022) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52101-ABW-000 | BOLT, SWINGARM PIVOT | 1 | |
| 2 | 52110-ABW-300 | SWINGARM COMP REAR | 1 | |
| 3 | 90305-KVN-900 | NUT, FLG. PT. 14 MM | 1 | |
| 4 | 90501-ABW-000 | COLLAR, CHAIN CASE | 1 | |
| 5 | 52170-ABW-100 | SLIDER CHAIN | 1 | |
| 6 | 52143-KVE-900 | COLLAR, PIVOT DIST L | 2 | |
| 7 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 3 | |
| 8 | 91254-KS6-003 | DUST SEAL 20 X 26 X 4.5 | 4 | |
| 9 | 40510-ABW-900 | CHAIN CASE UPPER | 1 | |
| 10 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 11 | 90522-AAB-000 | WASHER, CHAIN CASE SETTING | 1 | |
| 12 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 | |
| 13 | 51103-AAB-A00 | GUARD SAREE | 1 | |
| 14 | 40550-AAB-A00 | GUARD LOWER FINAL DRIVE | 1 | |
| 15 | 91071-KVN-900 | BRG, NEEDLE 20X26X20 | 2 | |
| 16 | 95701-05010-00 | BOLT FLANGE 5X10 | 2 | |
| 17 | 90556-044-000 | WASHER, FENDER SETTING | 2 | |
