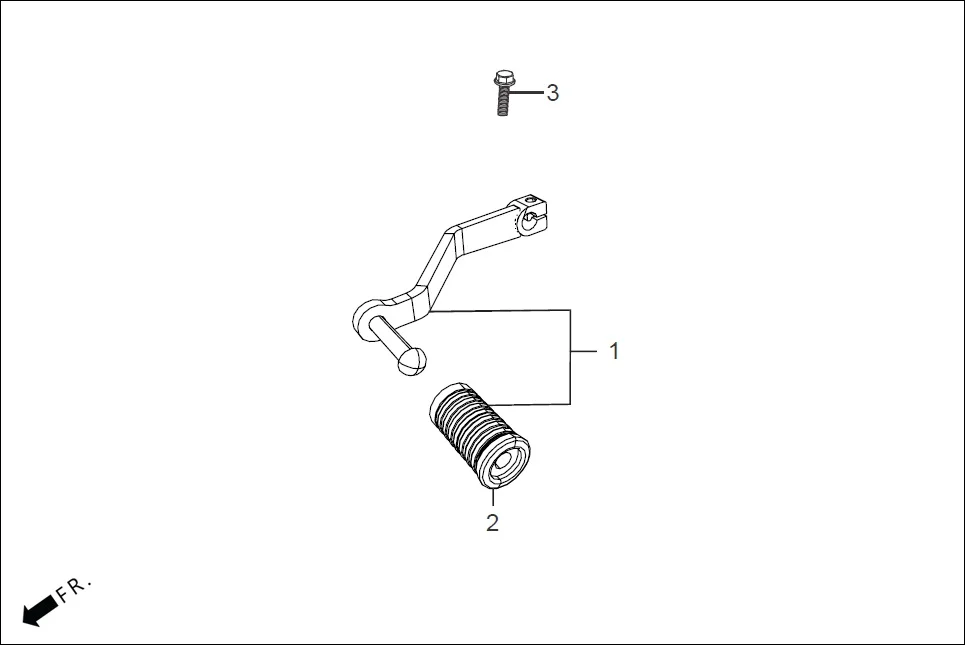

F-17 - PEDAL
Hero Xpulse 200 4V(July 2022) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24700-ABW-110 | PEDAL ASSY GEAR CHANGE | 1 | |
| 2 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 3 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
