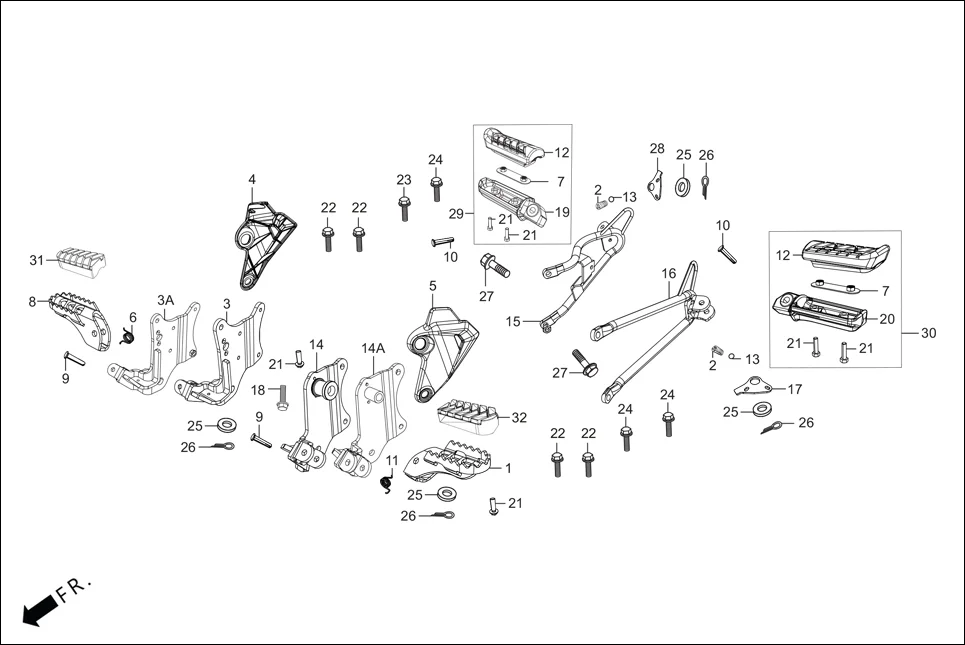

F-15 - STEP PILLION / HOLDER / BRKT.
Hero Xpulse 200 4V(July 2022) · 30 parts
Parts in This Assembly (30)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 5064A-ABW-100 | FOOT PEG ASSY L | 1 | |
| 2 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 3 | 50600-ABW-100 | HOLDER R RIDER STEP | 1 | |
| 3 | 50600-ABW-000 | HOLDER RH RIDER STEP | 1 | |
| 4 | 50660-ABW-100 | COVER RH RIDER STEP | 1 | |
| 5 | 50670-ABW-100 | COVER LH RIDER STEP | 1 | |
| 6 | 50617-AAS-000 | SPG STEP RETURN R | 1 | |
| 7 | 50619-KRY-970 | PLATE STEP SET | 2 | |
| 8 | 5061A-ABW-100 | FOOT PEG ASSY R | 1 | |
| 9 | 50639-ABW-000 | PIN, FOOTPEG | 2 | |
| 10 | 50638-ABW-000 | PIN, FOOT PEG PILLION | 2 | |
| 11 | 50644-AAS-000 | SPG STEP RETURN L | 1 | |
| 12 | 50661-KVE-860 | RUBBER,STEP | 2 | |
| 13 | 96211-08000 | BALL STEEL 8 MM | 2 | |
| 14 | 50700-ABW-100 | HOLDER L, RIDER STEP | 1 | |
| 14 | 50700-ABW-000 | HOLDER LH RIDER STEP | 1 | |
| 15 | 50701-ABW-B00 | HOLDER RH PILLION STEP | 1 | |
| 16 | 50702-ABW-100 | HOLDER LH PILLION STEP | 1 | |
| 17 | 50718-AAS-000 | DETENT PLATE BALL | 1 | |
| 19 | 50720-ABW-800 | ARM R PILLION STEP | 1 | |
| 20 | 50730-ABW-800 | ARM L PILLION STEP | 1 | |
| 21 | 90115-MV9-000 | BOLT, M. STEP RUB.SET | 6 | |
| 23 | 95701-08014-00 | BOLT FLANGE 8X14 | 1 | |
| 25 | 94102-08000 | WASHER, PLAIN, 8MM | 4 | |
| 27 | 95801-10065-00 | BOLT FLANGE 10X65 | 2 | |
| 28 | 50718-ABW-B00 | DETENT PLATE | 1 | |
| 29 | 5072A-ABW-800 | ARM R PILLION STEP SUB. ASSY | 1 | |
| 30 | 5073A-ABW-800 | ARM L PILLION STEP SUB. ASSY | 1 | |
| 31 | 50647-ABW-900 | FOOT PEG RUBBER RH. ASSY | 1 | |
| 32 | 50648-ABW-900 | FOOT PEG RUBBER LH. ASSY | 1 | |
