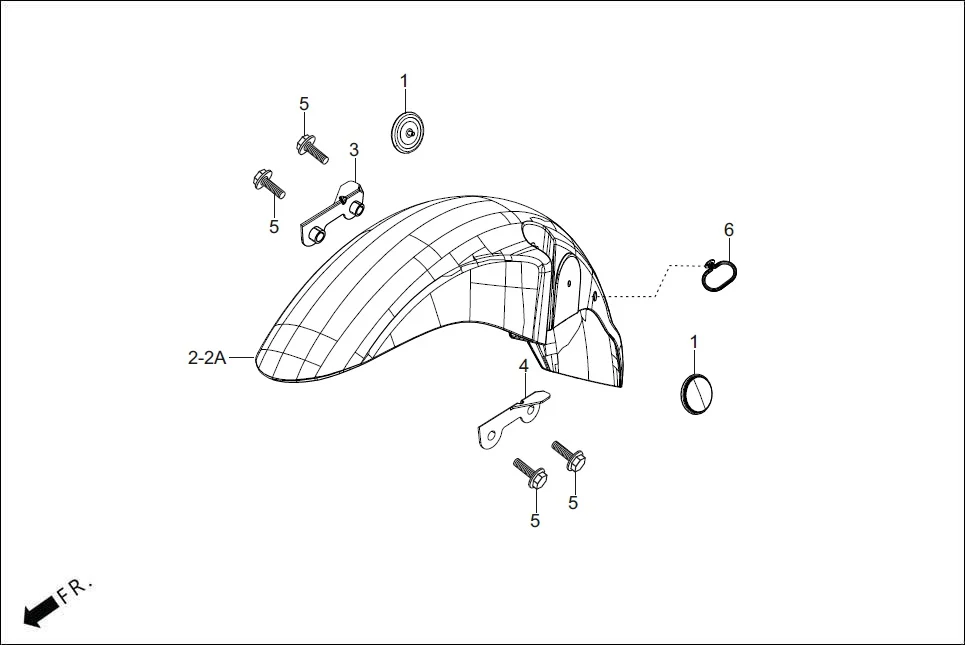

F-7 - FENDER FRONT
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-AAG-501 | REFLEX REFLECTOR FR SIDE | 2 | |
| 1 | 33741-KAK-971 | REFLEX, LEFT FRONT | 2 | |
| 2 | 61100-AAE-200C | FENDER COMP. FR. (MAT AXIS GRAY METALLIC) | 1 | |
| 2 | 61100-AAE-200G | FENDER COMP FRONT (INDUSTRIAL DARK GREY) | 1 | |
| 3 | 61103-KST-940 | COLLER, FR. FENDER R | 1 | |
| 4 | 61104-KST-940 | COLLER, FR. FENDER L | 1 | |
| 5 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 6 | 45451-AAF-400 | GUIDE, FR. (FENDER) CABLE | 1 | |
