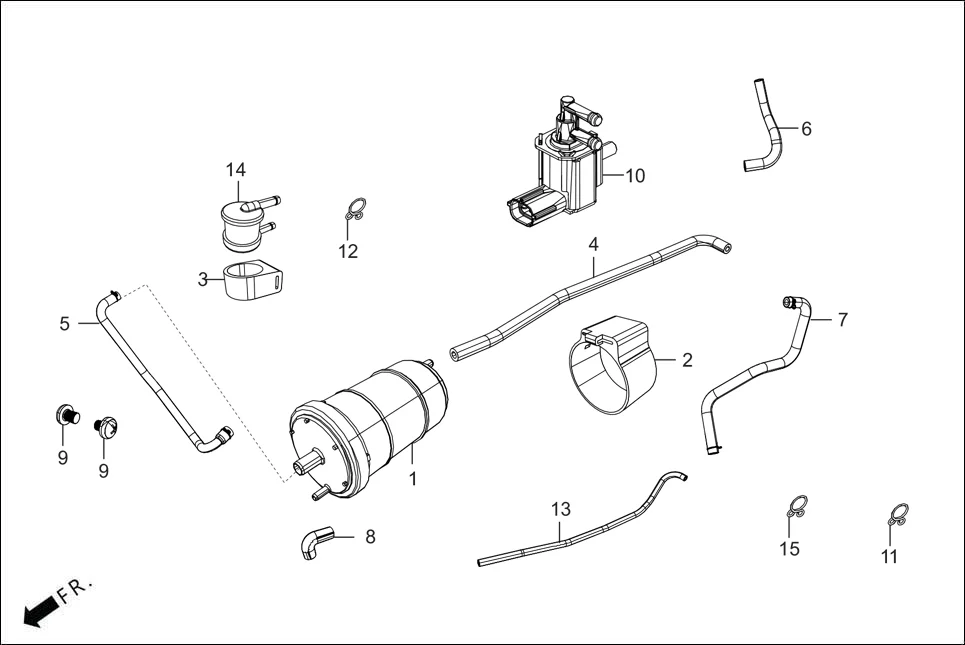

F-13A - CANISTER ASSY.
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAC-700 | CANISTER COMP | 1 | |
| 2 | 17411-AAE-300 | SUSP. CANISTER | 1 | |
| 3 | 17421-AAE-100 | SUSP. ROLL OVER VALVE | 1 | |
| 4 | 17691-AAE-300 | TUBE A CANISTER | 1 | |
| 5 | 1769K-ADH-600 | PURGE TUBE A | 1 | |
| 6 | 17694-AAE-C30 | TUBE BREATHER | 1 | |
| 7 | 1769M-ADH-600 | PURGE TUBE B | 1 | |
| 8 | 17695-AAE-100 | TUBE D CANISTER BREATHER | 1 | |
| 9 | 93500-05006-0A | SCREW PAN 5X6 | 2 | |
| 10 | 17554-AAE-B0099 | PURGE SOLENOID VALVE | 2 | |
| 11 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 12 | 95002-70000 | CLIP, C11 TUBE | 1 | |
| 13 | 17696-AAE-100 | TUBE C CANISTER DRAIN | 1 | |
| 14 | 17420-AAD-A00 | ROLL OVER VALVE | 1 | |
| 15 | 95002-02080 | CLIP, TUBE | 8 | |
