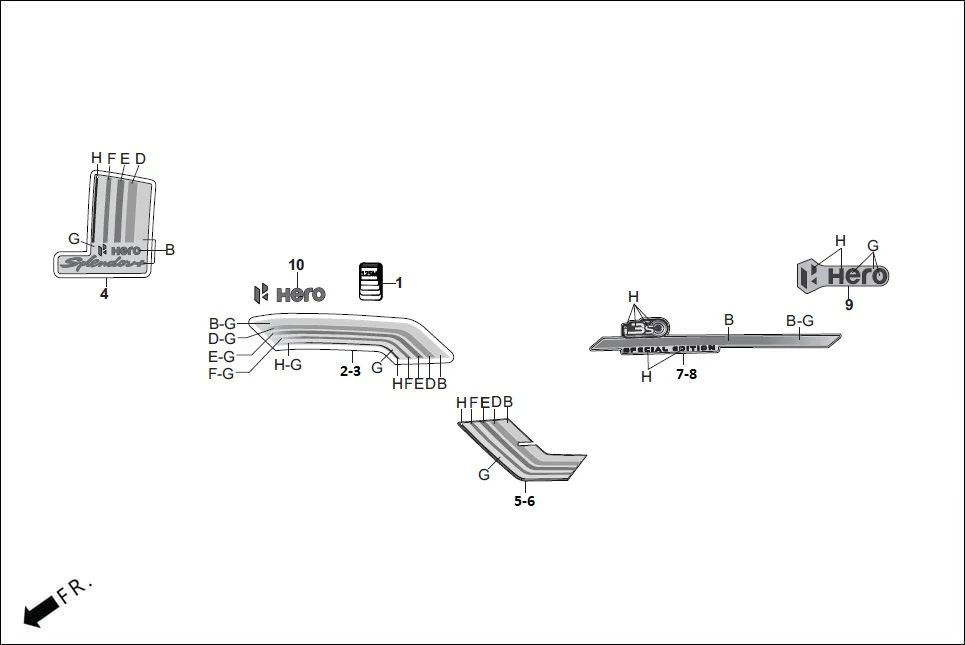

F-27D - STRIPES/MARK
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | ADHNB4A006000G | EMBLEM 125M PORTRAIT | 1 | |
| 2 | ADHNS6B0000BPG | STRIPE TANK FUEL RH (TYPE-1) | 1 | |
| 3 | ADHNS6B0010BPG | STRIPE TANK FUEL LH (TYPE-1) | 1 | |
| 4 | ADHNS6B0020BPG | STRIPE A VISOR FRONT (TYPE-1) | 1 | |
| 5 | ADHNS6B0030BPG | STRIPE SIDE COVER RH (TYPE-1) | 1 | |
| 6 | ADHNS6B0040BPG | STRIPE SIDE COVER LH (TYPE-1) | 1 | |
| 7 | ADHNS6B0050BPG | STRIPE COWL REAR RH (TYPE-1) | 1 | |
| 8 | ADHNS6B0060BPG | STRIPE COWL REAR LH (TYPE-1) | 1 | |
| 9 | ADHNS6B0070BPG | STRIPE COWL REAR CENTER (TYPE-1) | 1 | |
| 10 | ADHNB4A004000G | EMBLEM TANK FUEL | 1 | |
