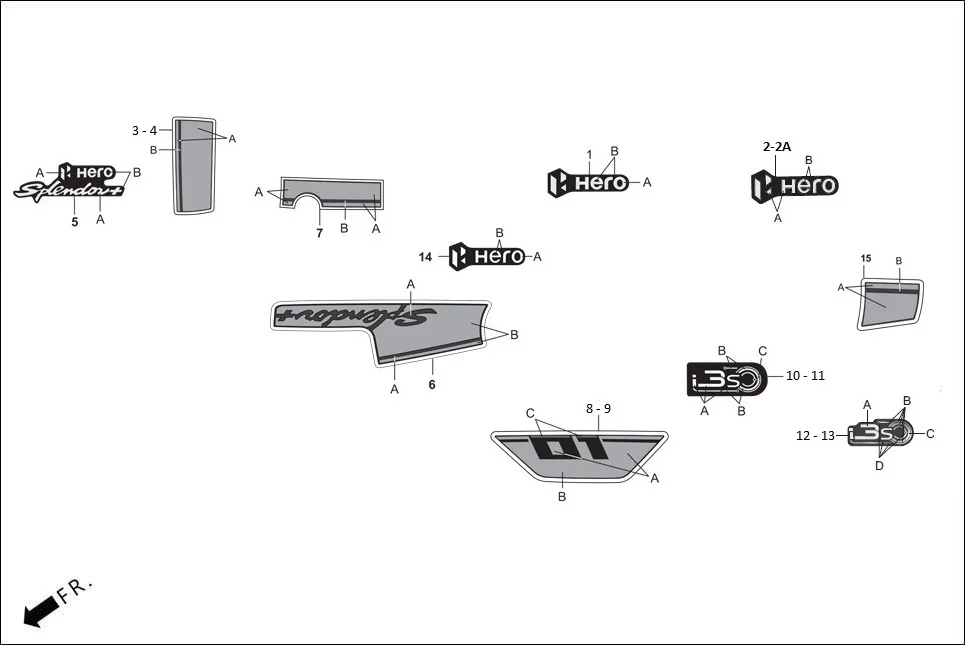

F-27 - STRIPES/MARK
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86833-AAE-400 | EMBLEM,R FUEL TANK | 1 | |
| 2 | 77238-AAE-300R | MARK, CENTER RR. COWL (TYPE-1) | 1 | |
| 2 | 77238-ADH-700R | MARK CENTER RR. COWL (TYPE-1) | 1 | |
| 2 | 77238-ADH-700V | MARK CENTER RR COWL (TYPE-2) | 1 | |
| 3 | 86611-ADH-700R | STRIPE A VISOR FRONT (TYPE-1) | 1 | |
| 3 | 86611-ADH-700V | STRIPE A VISOR FRONT (TYPE-2) | 1 | |
| 4 | 86612-ADH-700R | STRIPE B VISOR FRONT (TYPE-1) | 1 | |
| 4 | 86612-ADH-700V | STRIPE B VISOR FRONT (TYPE-2) | 1 | |
| 5 | 86838-AAE-300R | MARK HERO FR VISOR (TYPE-1) | 1 | |
| 6 | 17595-ADH-700R | STRIPE FUEL TANK (TYPE-1) | 1 | |
| 6 | 17595-ADH-700V | STRIPE FUEL TANK (TYPE-2) | 1 | |
| 7 | 17591-ADH-700R | STRIPE LID FUEL TANK (TYPE-1) | 1 | |
| 7 | 17591-ADH-700V | STRIPE LID FUEL TANK (TYPE-2) | 1 | |
| 8 | 86115-ADH-700R | STRIPE SIDE COVER RH (TYPE-1) | 1 | |
| 8 | 86115-ADH-700V | STRIPE SIDE COVER RH (TYPE-2) | 1 | |
| 9 | 86116-ADH-700R | STRIPE SIDE COVER LH (TYPE-1) | 1 | |
| 9 | 86116-ADH-700V | STRIPE SIDE COVER LH (TYPE-2) | 1 | |
| 10 | 87115-AAE-A00R | MARK I3S R SIDE COVER (TYPE-1) | 1 | |
| 11 | 87116-AAE-A00R | MARK I3S L SIDE COVER (TYPE-1) | 1 | |
| 12 | 87131-ADH-700R | MARK I3S REAL COWL R (TYPE-1) | 1 | |
| 12 | 87131-ADH-700V | MARK I3S REAL COWL R (TYPE-2) | 1 | |
| 13 | 87132-ADH-700R | MARK I3S REAL COWL L (TYPE-1) | 1 | |
| 13 | 87132-ADH-700V | MARK I3S REAL COWL L (TYPE-2) | 1 | |
| 14 | 17507-AAE-A00R | MARK HERO RH FUEL TANK (TYPE-1) | 1 | |
| 15 | 77239-ADH-700R | STRIPE REAR CENTER COWL (TYPE-1) | 1 | |
| 15 | 77239-ADH-700V | STRIPE REAR CENTER COWL (TYPE-2) | 1 | |
