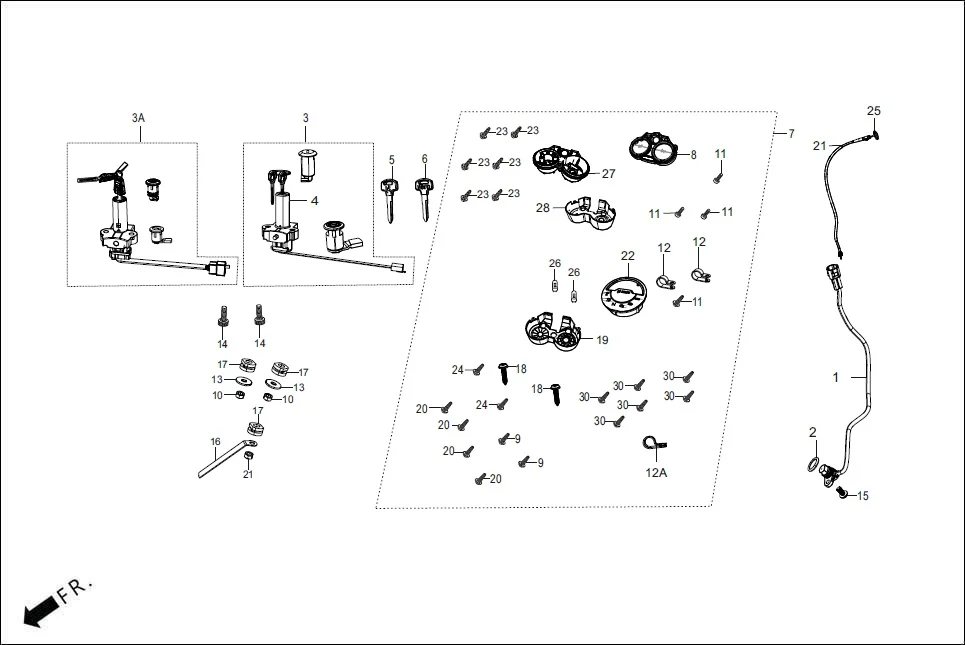

F-2 - SPEEDOMETER/CABLE/KEY SET
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 38 parts
Parts in This Assembly (38)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37700-AAE-312 | SPEED SENSOR ASSY., (SELF I3S) | 1 | |
| 1 | 37700-ACK-02099 | SPEED SENSOR ASSY | 1 | |
| 2 | 37701-AAG-A01 | O RING SPEED SENSOR | 1 | |
| 2 | 37701-AAC-812 | O RING SPEED SENSOR (SELF I3S) | 1 | |
| 2 | 37701-AAN-B01 | ORING SPEED SENSOR | 1 | |
| 3 | 35010-AAE-301 | KEY SET | 1 | |
| 3 | ADHNA7V000000G | KEY SET | 1 | |
| 4 | 35100-AAE-301 | SWITCH ASSY., COMB.& LOCK | 1 | |
| 5 | 35121-AAE-H00 | KEY BLANK NO 1 | 1 | |
| 6 | 35122-AAE-H00 | KEY BLANK NO 2 | 1 | |
| 7 | 37100-ADH-B1099 | METER ASSY COMB | 1 | |
| 8 | 37610-ADH-B11 | CASE UPPER ASSY | 1 | |
| 8 | 37610-ADH-B12 | CASE UPPER ASSY | 1 | |
| 8 | ADHMA7Y010000G | CASE UPPER ASSY | 1 | |
| 9 | 93913-24310 | SCREW TAPPING 4X14 | 3 | |
| 10 | 94001-06070-0S | NUT, HEX., 6 MM | 2 | |
| 11 | 90108-KWH-961 | SCREW, WASH, 3X22 | 6 | |
| 12 | 37215-MB6-830 | CLAMP | 2 | |
| 12 | ADHMA7Y011000G | CLAMP SUB CORD SPEEDOMETER | 1 | |
| 13 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 14 | 96700-08020-00 | BOLT SOCKET, 8 MM | 2 | |
| 15 | 96001-06012-00 | BOLT,FLANGE,SH,.6 X 12 | 1 | |
| 16 | 61317-KCC-900 | GUIDE `A | 1 | |
| 17 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 1 | |
| 18 | 93903-22480 | SCREW TAPPING 3 X 16 | 2 | |
| 19 | ADHMA7Y007000G | COVER SPEEDOMETER BACK | 1 | |
| 21 | 44830-AAD-000 | CABLE COMP SPDMT. | 1 | |
| 22 | 37652-ADH-B11 | DIAL DESIGN PILOT ASSY | 1 | |
| 22 | 37652-ADH-B12 | DIAL DESIGN PILOT ASSY | 1 | |
| 24 | 90035-KST-900 | SCREW,WASH,4 X 8 | 2 | |
| 25 | 91352-GAZ-930 | O-RING 8.5X11.5 | 1 | |
| 26 | 34910-AAJ-601 | BULB WEDGE BASE (T10 12V 1.7W) | 2 | |
| 26 | 34910-KWA-930 | BULB WEDGE BASE (T10 12V, 1.7W) | 2 | |
| 26 | 34910-AAJ-600 | BULB WEDGE BASE (T10 12V 1.7W) | 2 | |
| 27 | 37612-ADH-B11 | CASE UNDER ASSY | 1 | |
| 27 | 37612-ADH-B12 | CASE UNDER ASSY | 1 | |
| 28 | ADHMA7Y006000G | CASE UNDER ASSY | 1 | |
| 28 | 37614-KCC-900 | COVER, UNDER CASE | 2 | |
