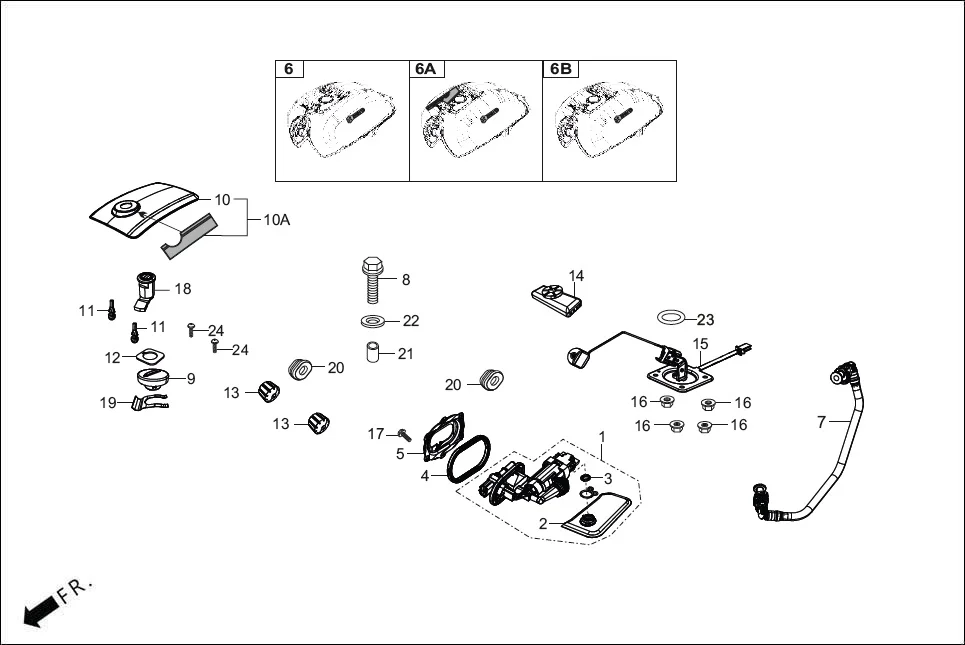

F-13 - FUEL TANK
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-AAE-300 | UNIT ASSY FUEL PUMP | 1 | |
| 2 | 16701-AAE-300 | FUEL PUMP FILTER | 1 | |
| 3 | 16702-AAL-901 | FUEL PUMP O-RING | 1 | |
| 4 | 17572-AAE-C30 | GASKET FUEL PUMP | 1 | |
| 5 | 17507-AAE-300 | PLATE SETTING | 1 | |
| 6 | 17520-AAE-A00R | SET, FUEL TANK (BLACK NH-1) TYPE-1 | 1 | |
| 6 | 17520-ADH-800C | SET, FUEL TANK (MAT AXIS GRAY METALLIC) | 1 | |
| 6 | 17520-ADH-800J | SET FUEL TANK (MATT VERNIER GREY) | 1 | |
| 6 | ADHNS6A0000BPG | SET TANK FUEL (INDUSTRIAL DARK GREY) | 1 | |
| 7 | 17570-AAE-30099 | HOSE COMP. FUEL FEED | 1 | |
| 7 | 17570-AAE-301 | HOSE COMP. FUEL FEED | 1 | |
| 8 | 95701-08035-00 | BOLT, FLANGE, 8 X 35 | 1 | |
| 9 | 17620-AAE-C31 | CAP COMP FUEL FILLER | 1 | |
| 10 | 17511-KCC-900S | SET LID FUEL TANK (BLACK (TYPE-2)NH-1) | 1 | |
| 10 | 17530-ADH-700C | SET LID FUEL TANK (MAT AXIS GRAY METALLIC) | 1 | |
| 10 | 17530-ADH-700J | SET LID FUEL TANK (MATT VERNIER GREY) | 1 | |
| 10 | 17530-ADH-700V | LID FUEL TANK (MATT VERNIER GREY) | 1 | |
| 11 | 17512-KCC-900 | STOPPER, TANK LID | 2 | |
| 12 | 17525-KCC-900 | SPACER, FUEL TANK LID | 1 | |
| 13 | 17611-KFN-850 | CUSHION, FR. FUEL TANK | 2 | |
| 14 | 17613-KCC-900 | CUSHION, RR. TANK | 1 | |
| 15 | 37800-AAE-30099 | UNIT ASSY. FUEL | 1 | |
| 16 | 94050-06000 | NUT, FLANGE, 6 MM | 4 | |
| 17 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 6 | |
| 18 | 37230-KWH-H01 | LOCK FILLER LID | 1 | |
| 19 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 20 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 21 | 90324-KCC-900 | COLLAR, 8 MM | 1 | |
| 22 | 90325-KCC-900 | WASHER, PLAIN, 8 MM | 1 | |
| 23 | 91305-ACK-400 | O-RING, 39.5X5 | 1 | |
| 24 | 93500-05006-0A | SCREW PAN 5X6 | 2 | |
