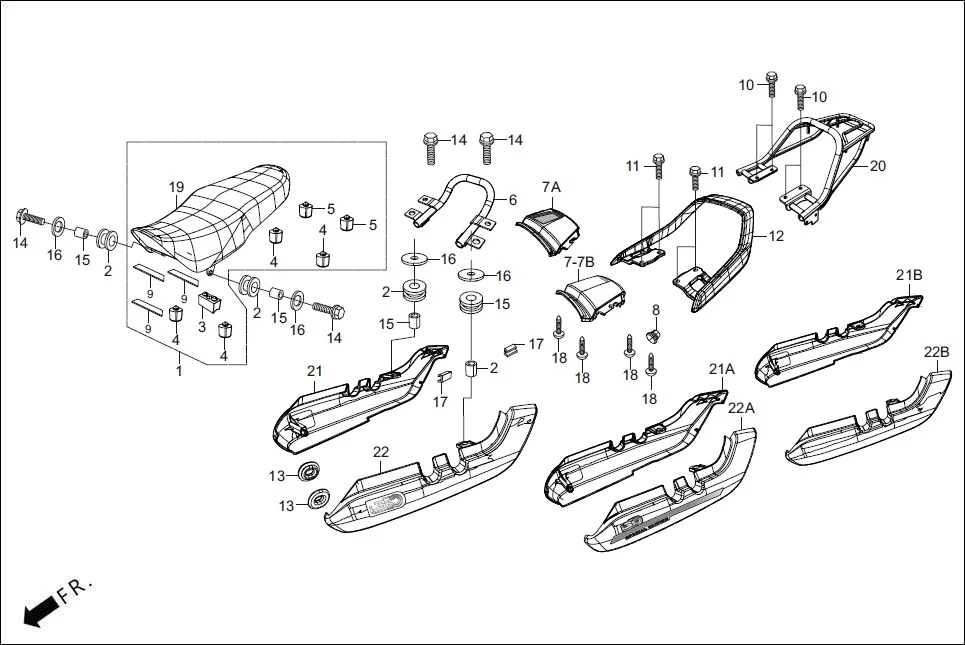

F-12 - SET ASSY./RR. COWL/REAR CARRIER
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 37 parts
Parts in This Assembly (37)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77200-AAE-300 | SEAT ASSY., DOUBLE | 1 | |
| 2 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 2 | |
| 3 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 1 | |
| 4 | 77206-KCC-900 | RUBBER, SEAT CUSHION | 4 | |
| 5 | 77206-ADH-600 | RUBBER SEAT CUSHION | 2 | |
| 6 | 77215-ADH-800 | CROSS PIPE | 1 | |
| 6 | 77215-AAD-300 | CROSS PIPE | 1 | |
| 7 | 77235-AAE-300R | SET CENTER RR COWL (BLACK NH-1) | 1 | |
| 7 | 77235-AAE-500R | SET CENTER RR COWL (PRIME RED RD(BR)-016M(G)) | 1 | |
| 7 | 77235-ADH-700C | SET CENTER RR COWL (MAT AXIS GRAY METALLIC) | 1 | |
| 7 | 77235-ADH-700J | SET REAR CENTER COWL ( MATT VERNIER GREY) | 1 | |
| 7 | ADHNS6A0060BPG | SET CENTER COWL REAR (INDUSTRIAL DARK GREY) | 1 | |
| 8 | 84103-AAD-300 | CAP, CARRIER RR. | 2 | |
| 9 | 77211-KCC-900 | CUSHION, SEAT | 3 | |
| 10 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 2 | |
| 11 | 95701-08022-00 | BOLT, FLANGE, 8 X 22 | 2 | |
| 12 | 50400-ADH-800D | GRIP REAR | 1 | |
| 13 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 14 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 15 | 84702-KCC-900 | COLLAR, STAY NO. PLATE SET | 2 | |
| 16 | 90563-355-000 | WASHER, WHEEL, 6 MM | 2 | |
| 17 | 90810-KCC-910 | RUBBER, STOPPER | 2 | |
| 18 | 93903-34310 | SCREW TAPPING M4X12 | 4 | |
| 19 | 7720B-AAD-300 | COVER SEAT ASSY. | 1 | |
| 20 | 81200-AAD-300 | CARRIER REAR | 1 | |
| 21 | 77300-ADH-700C | SET, ‘R’ SIDE-COWL (MAT AXIS GRAY METALLIC) | 1 | |
| 21 | 77300-ADH-700J | SET REAR COWL RH (MATT VERNIER GREY) | 1 | |
| 21 | ADHNS6A0040BPG | SET COWL REAR RH (INDUSTRIAL DARK GREY) | 1 | |
| 21 | 77246-AAD-000R | COWL R SIDE (BLACK NH-1) | 1 | |
| 21 | 77246-AAE-200V | COWL R SIDE (MATT VERNIER GREY) | 1 | |
| 21 | 77246-AAE-200C | COWL R SIDE (MAT AXIS GRAY METALLIC) | 1 | |
| 22 | 77400-ADH-700C | SET, ‘L’ SIDE-COWL (MAT AXIS GRAY METALLIC) | 1 | |
| 22 | 77400-ADH-700J | SET REAR COWL LH (MATT VERNIER GREY) | 1 | |
| 22 | ADHNS6A0050BPG | SET COWL REAR LH (INDUSTRIAL DARK GREY) | 1 | |
| 22 | 77256-AAD-000R | COWL L SIDE (BLACK NH-1) | 1 | |
| 22 | 77256-AAE-200V | COWL L SIDE (MATT VERNIER GREY) | 1 | |
| 22 | 77256-AAE-200C | COWL L SIDE (MAT AXIS GRAY METALLIC) | 1 | |
