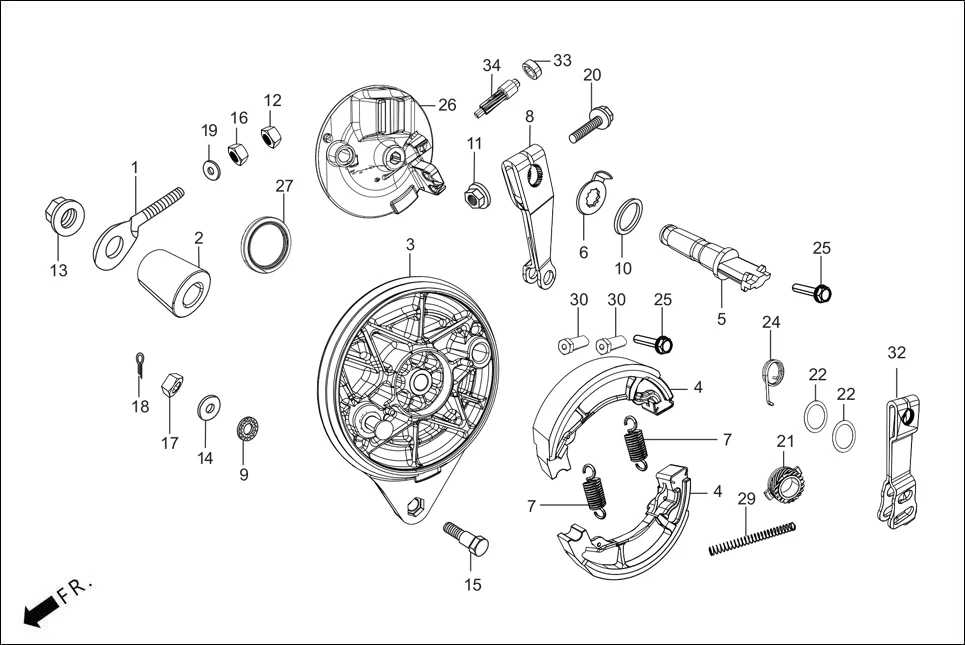

F-10 - REAR BRAKE PANEL
Hero SPLENDOR PLUS OBD2B(Apr., 2025) · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40543-198-900 | ADJUSTER, R CHAIN | 1 | |
| 2 | 42313-ACK-001 | COLLAR, RR. BRAKE PANEL SIDE | 1 | |
| 3 | 43100-ACK-001 | PANEL COMP., RR. BRAKE | 1 | |
| 4 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 5 | 43141-KTC-900 | CAM, REAR BRAKE | 1 | |
| 6 | 45145-KFM-900 | INDICATOR, FR. BRK | 1 | |
| 6 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 7 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 8 | 43410-AAH-F00 | ARM, RR. BRAKE | 1 | |
| 9 | 43434-ME1-670 | RUBBER, STOPPER ARM | 1 | |
| 10 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 11 | 90301-473-000 | NUT,U 6MM | 1 | |
| 12 | 90302-KBP-900 | NUT SPL 6 MM | 1 | |
| 13 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 14 | 90505-425-000 | WASHER, 8 MM | 1 | |
| 15 | 92811-10000 | BOLT A BRAKE STOPPER | 1 | |
| 16 | 94001-06000-0S | NUT, HEX., 6 MM | 1 | |
| 17 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 18 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 19 | 94101-06000 | WASHER, PLAIN, 6 MM | 1 | |
| 20 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
| 21 | 44806-KST-900 | GEAR, SPEEDOMETER | 1 | |
| 22 | 44809-170-000 | WASHER, SPEEDOMETER GEAR | 2 | |
| 23 | 45141-KTC-900 | CAM FR. BRAKE | 2 | |
| 24 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 2 | |
| 25 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 26 | 45010-AAH-J00 | PANEL SUB. COMP, FR. BRAKE (MGM) | 1 | |
| 27 | 91251-GK4-000 | OIL SEAL, 47X60X7 | 1 | |
| 28 | 45456-AAL-100 | SPRING BRK CABLE END | 1 | |
| 28 | 45456-AAW-000 | SPRING BRK CABLE END | 1 | |
| 29 | 45459-AAC-830 | NUT BRAKE ADJUSTING | 2 | |
| 31 | 45100-AAH-J00 | PANEL COMP FR BRAKE | 1 | |
| 32 | 45410-AAH-F00 | ARM, FR. BRAKE | 2 | |
| 33 | 44810-KTC-900 | BUSH, PINION | 1 | |
| 34 | 44805-KTC-900 | PINION, SPEEDOMETER | 1 | |
