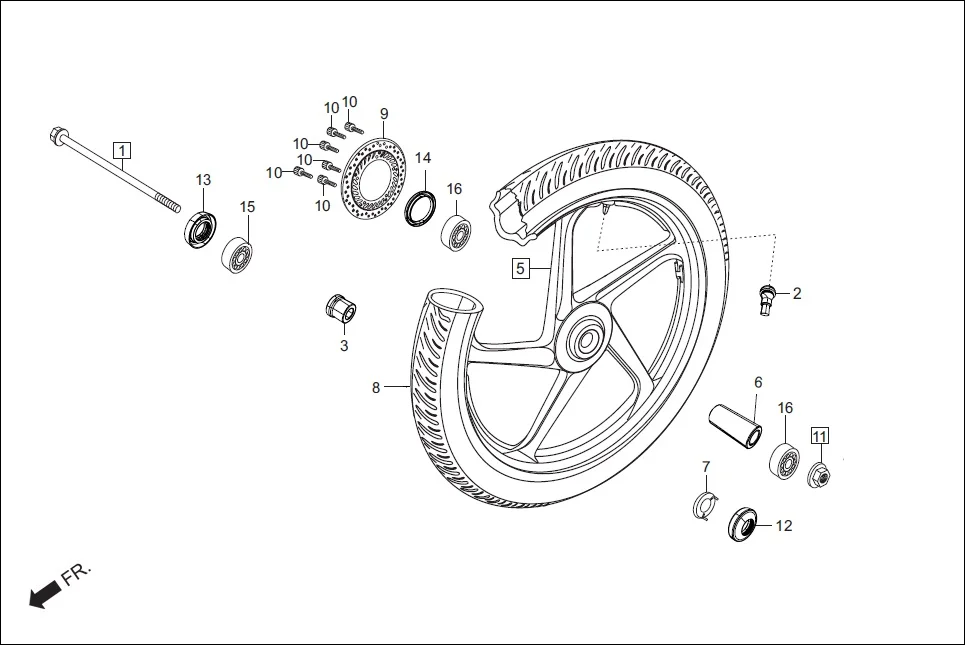

F-7-DISC - FRONT WHEEL
Hero Passion X PRO (Jan, 2019) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 44301-KTR-700 | AXLE, FR. WHEEL | 1 | |
| 2 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 3 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 5 | K44446AAZA000S | KIT, WHEEL COMP. FRONT | 1 | |
| 6 | 44620-400-000 | COLLAR, FRONT DISTANCE | 1 | |
| 7 | 44680-410-000 | RETAINER, GEAR BOX | 1 | |
| 8 | 44711-AAN-41099 | TIRE FRONT (DRUM) | 1 | |
| 9 | 45251-KVE-901 | DISC, FRONT BRAKE | 1 | |
| 10 | 90105-MK5-010 | BOLT, FR., DISC, 8 X 22 | 6 | |
| 11 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 11 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 12 | 90755-229-000 | OIL SEAL, 21 X 37 X 7 | 1 | |
| 13 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 14 | 91258-KEJ-900 | DUST SEAL, 40 X 50 X 5 | 1 | |
| 16 | 96150-63010-10 | BEARING, BALL RADIAL, 6301 (UU) | 2 | |
