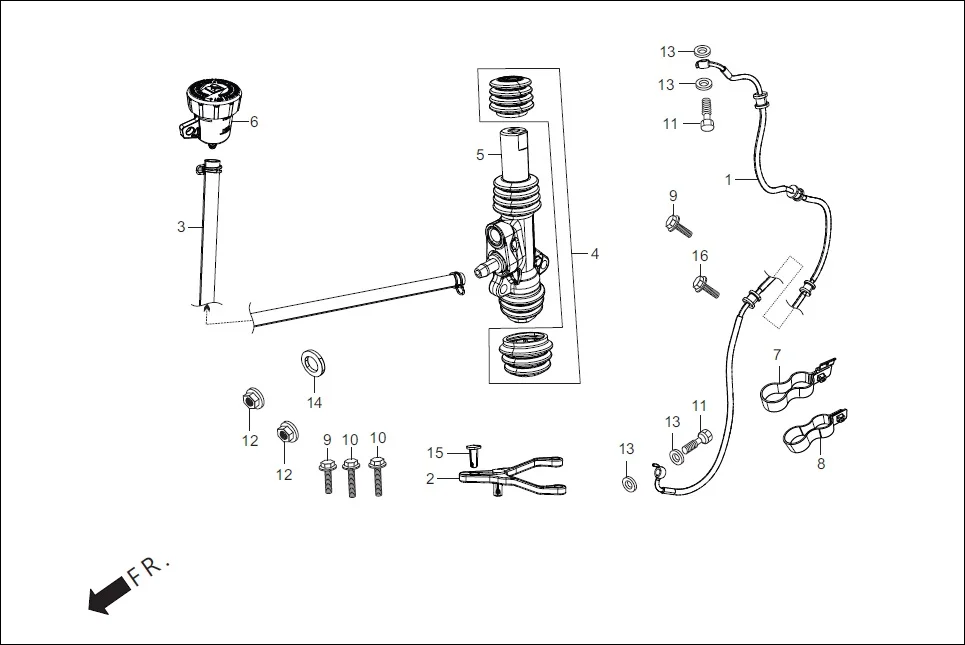

F-8C-DISC - ACTUATOR ASSY.
Hero Passion X PRO (Jan, 2019) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 4311A-AAN-G00 | STEEL BRAIDED HOSE ASSY | 1 | |
| 2 | 4344A-AAN-G00 | U CLAMP ASSY | 1 | |
| 3 | 43510-AAZ-310 | HOSE KIT,ACTUATOR | 1 | |
| 4 | 43539-AAN-E00 | BOOT SET | 1 | |
| 5 | 43540-AAN-E00 | ACTUATOR, CBS | 1 | |
| 6 | 43550-AAZ-310 | RESERVOIR COMP RR | 1 | |
| 7 | 45155-AAN-E00 | CLAMPER, A FR. BRAKE | 1 | |
| 8 | 45156-AAN-E00 | CLAMPER, FR. BRAKE | 1 | |
| 9 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 2 | |
| 10 | 95701-AAN-E00 | BOLT FLANGE 6X22 | 2 | |
| 11 | 90145-MS9-610 | OIL BOLT, 10 X 22 | 2 | |
| 12 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 13 | 90545-300-000 | WASHER ,OIL BOLT | 4 | |
| 14 | 94101-06000 | WASHER, PLAIN, 6 MM | 1 | |
| 15 | 95015-AAN-G00 | PIN A, LINK | 1 | |
| 16 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
