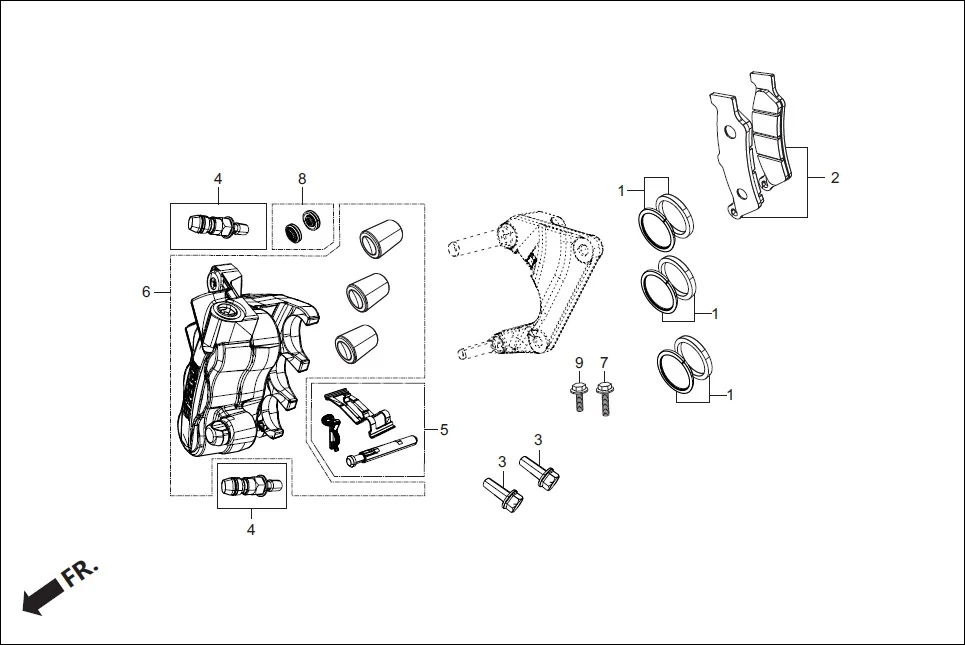

F-6A-DISC - FR. BRAKE (CALIPER ASSY. ‘R’ FR.)
Hero Passion X PRO (Jan, 2019) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-AAN-E00 | SEAL SET PISTON | 3 | |
| 2 | 06455-AAN-E00 | PAD SET FR. | 1 | |
| 3 | 90155-AAR-000 | BOLT FLANGE 8X28 | 2 | |
| 4 | 43314-AAN-G00 | BLEEDER SCREW ASSY | 2 | |
| 5 | 45220-AAN-E00 | PIN COMP.HANGER | 1 | |
| 6 | 45250-AAN-E00 | CALIPER SUB ASSY. RFR | 1 | |
| 7 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
| 8 | 45221-AAN-G00 | BOOT SET | 1 | |
