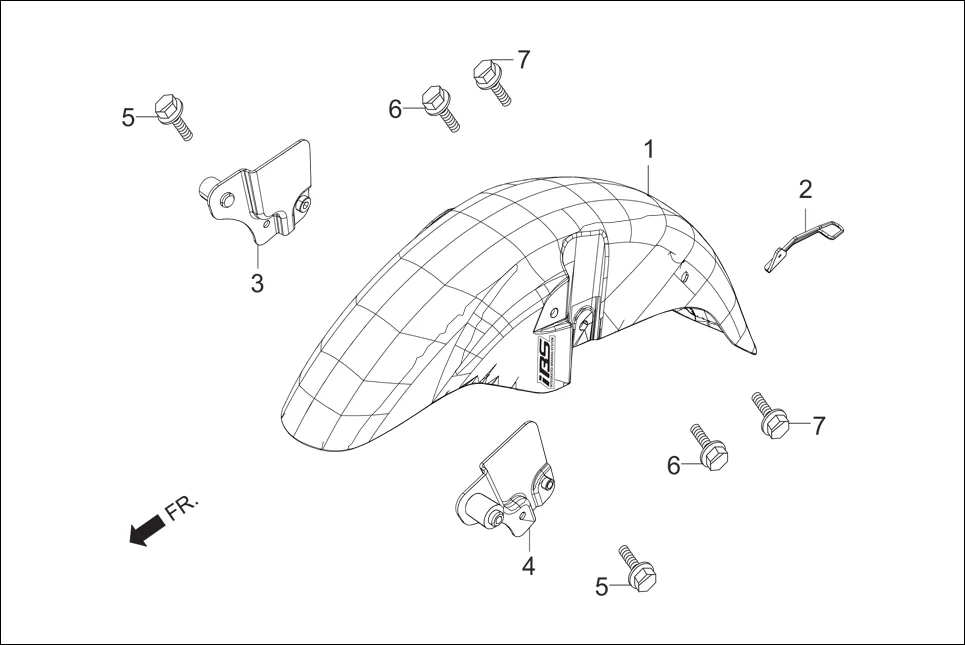

F-4 - FRONT FENDER
Hero Passion X PRO (Jan, 2019) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-AAZ-300R | SET FENDER FRONT (BLACK NH-1) | 1 | |
| 1 | 61000-AAZ-300U | SET FENDER FRONT (SPORTS RED) | 1 | |
| 1 | 61000-AAZ-300V | SET FENDER FRONT (FORCE SILVER ME.) | 1 | |
| 2 | 45451-KCC-900 | GUIDE, FR. FENDER CABLE | 1 | |
| 3 | 61102-AAZ-000 | STAY FR FENDER R | 2 | |
| 4 | 61103-AAZ-000 | STAY FR FENDER L | 1 | |
| 5 | 90104-KCC-870 | SCREW, SPECIAL , 6 X 12 | 2 | |
| 6 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
