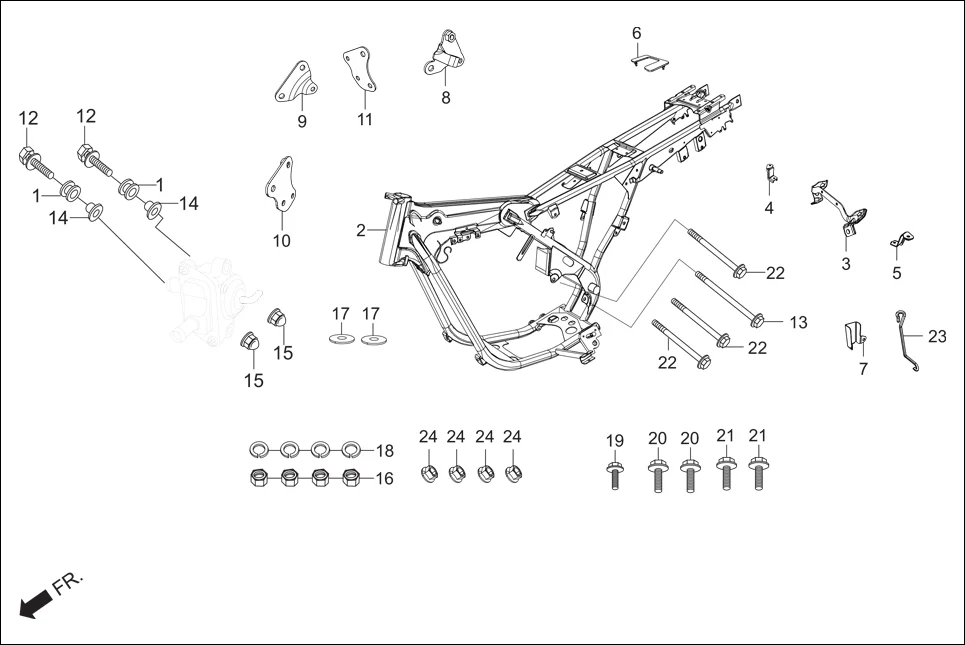

F-22-DISC - FRAME BODY
Hero Passion X PRO (Jan, 2019) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 2 | 50100-AAZ-310 | FRAME BODY COMP | 1 | |
| 3 | 50130-AAZ-000 | BRKT COMP REAR FENDER | 1 | |
| 4 | 50161-AAZ-000 | STAY R SIDE COVER COMP | 1 | |
| 5 | 50162-AAZ-000 | STAY L SIDE COVER COMP | 1 | |
| 6 | 50225-ABA-000 | RUBBER SEAT CUSHION. | 1 | |
| 7 | 50250-AAZ-000 | COVER SEAT LOCK CABLE | 1 | |
| 8 | 50353-AAZ-000 | PLATE ENG HANGER RR R | 1 | |
| 9 | 50354-ABA-000 | PLATE ENG HANGER RR L | 1 | |
| 10 | 50534-ABA-000 | PLATE ENG HANGER FR R | 1 | |
| 11 | 50535-ABA-000 | PLATE ENG HANGER FR L | 1 | |
| 12 | 90101-KCC-940 | BOLT WASH, 6 X 25 | 2 | |
| 13 | 90117-KCC-900 | BOLT, FLANGE, 8 X 110 | 1 | |
| 14 | 90501-KC2-750 | WASHER, REGULATOR SETTING | 2 | |
| 15 | 94021-06000-0S | NUT, HEX CAP 6MM | 2 | |
| 16 | 94030-08000 | NUT, HEX., 8 MM | 4 | |
| 19 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 22 | 95801-08100-08 | BOLT FLANGE 8X100 | 3 | |
| 23 | 50170-AAT-200 | GUIDE CBS CABLE | 1 | |
| 24 | 94050-08000 | NUT, FLANGE, 8MM | 4 | |
