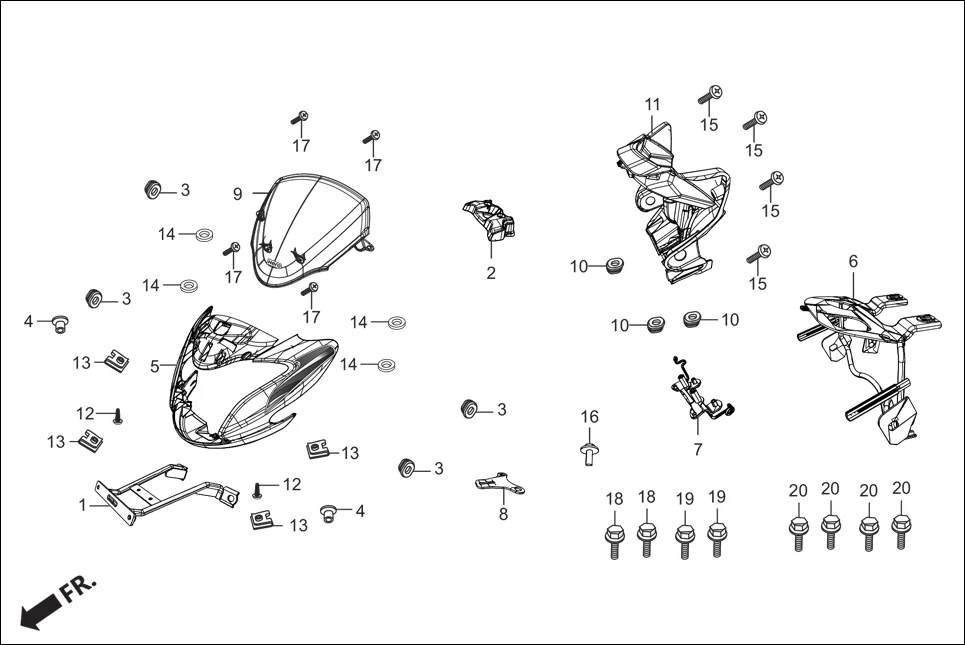

F-1A - HEAD LIGHT (FR. VISOR)
Hero Passion X PRO (Jan, 2019) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64315-AAZ-000 | STAY FR.NUMBER PLATE | 1 | |
| 2 | 53252-AAZ-000 | COVER MAIN SWITCH | 1 | |
| 3 | 61103-KVE-860 | RUBBER,FR COWL MOUNT | 4 | |
| 4 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 5 | 61300-AAZ-000R | SET FR. COWL (BLACK-1) NH-1 | 1 | |
| 5 | 61300-AAZ-000S | SET FR. COWL (BLACK-2) NH-1 | 1 | |
| 5 | 61300-AAZ-000T | SET FR. COWL (BLACK-3) NH-1 | 1 | |
| 5 | 61300-AAZ-000U | SET FR. COWL (SPORTS RED) | 1 | |
| 5 | 61300-AAZ-000V | SET FR. COWL (FORCE SILVER ME.) | 1 | |
| 6 | 61311-AAZ-000 | STAY FR. VISOR | 1 | |
| 7 | 61312-AAZ-000 | UPPER BRIDGE CLAMP COMP. | 1 | |
| 8 | 61313-AAZ-000 | LOWER BRIDGE CLAMP | 1 | |
| 9 | 64100-AAZ-000 | SET WIND SCREEN. | 1 | |
| 10 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 11 | 83402-AAZ-000 | PANEL INNER | 1 | |
| 12 | 90109-SB6-000 | SCREW, TRUSS, 5X14 | 2 | |
| 13 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 14 | 90563-355-000 | WASHER, WHEEL, 6 MM | 4 | |
| 15 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 16 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 1 | |
| 17 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
| 18 | 95701-06018-00 | BOLT FLANGE 6X18 | 2 | |
| 19 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 20 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 4 | |
