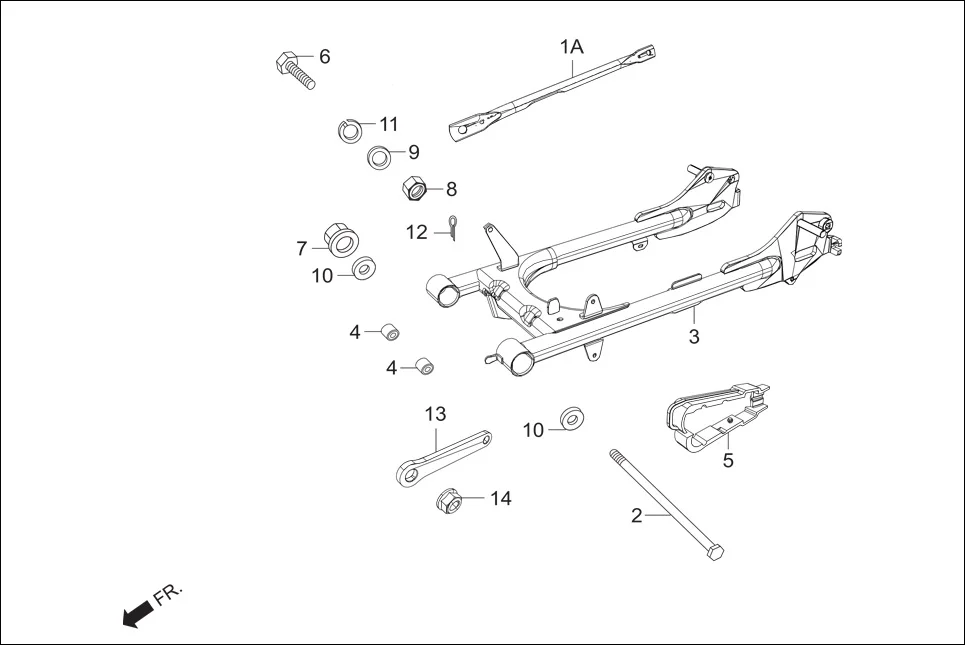

F-17A-DISC - REAR. CUSHION (SWINGARM COMP ASSY.)
Hero Passion X PRO (Jan, 2019) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43431-AAZ-310 | ARM RR BRKT STOPPER | 1 | |
| 2 | 52101-KTC-900 | BOLT, SWINGARM PIVOT | 1 | |
| 3 | 52110-AAZ-310 | SWINGARM COMP REAR | 1 | |
| 4 | 52147-KTC-900 | RUBBER BUSH, RR. FORK PIVOT | 2 | |
| 5 | 52170-AAJ-H40 | SLIDER CHAIN | 1 | |
| 6 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 7 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 7 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 94001-08000-0S | NUT, HEX., 8 MM | 1 | |
| 9 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 10 | 94102-12000 | WASHER, PLAIN, 12MM | 2 | |
| 11 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 12 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 13 | 52185-AAN-G00 | LINK U-CLAMP | 1 | |
| 14 | 90302-KTE-911 | NUT FLANGE PT 6MM | 1 | |
